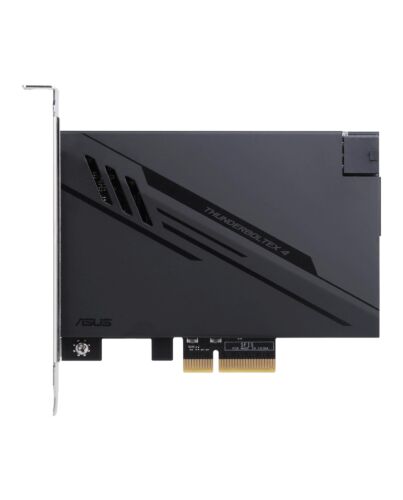

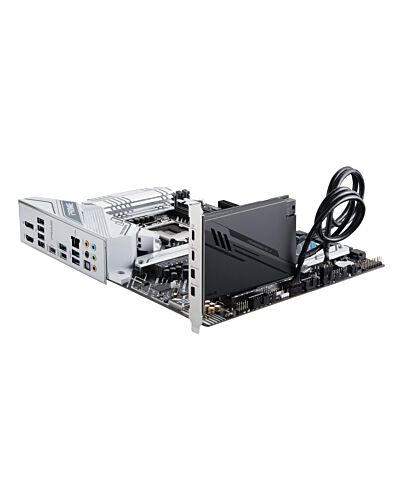

ASUS ThunderboltEX 4 interface cards/adapter Internal Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)

£100.01

ASUS ThunderboltEX 4, PCIe, Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2), PCIe 3.0, Black, PC, Intel Thunderbolt 4 JHL8540

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

Key Features

Intel®-certified Thunderbolt™ 4 add-on card
40 Gbps bi-directional bandwidth for superfast data transfers and video output
Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
DisplayPort™ 1.4 for 8K Ultra HD support

Specifications

Ports & interfaces

Host interface*

PCIe

Output interface*

Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)

Expansion card standard

PCIe 3.0

USB 2.0 ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Design

Internal*

Yes

Product colour

Black

Purpose

Features

Chipset

Intel Thunderbolt 4 JHL8540

Data transfer rate (max)

40 Gbit/s

Plug and Play

Yes

System requirements

Windows operating systems supported

Windows 10 x64

Weight & dimensions

Width

117.7 mm

Depth

180.5 mm

Packaging data

Quantity

Cables included

Mini DisplayPort, Thunderbolt, USB

Drivers included

Yes

Manual

Yes

Package type

Box

Logistics data

Harmonized System (HS) code

84733020

Other features

Maximum resolution

7680 x 4320 pixels

Compatibility

ASUS Intel 500

Additional Information

More Information
EAN/UPC	4711081115243
MPN	90MC09P0-M0EAY0
