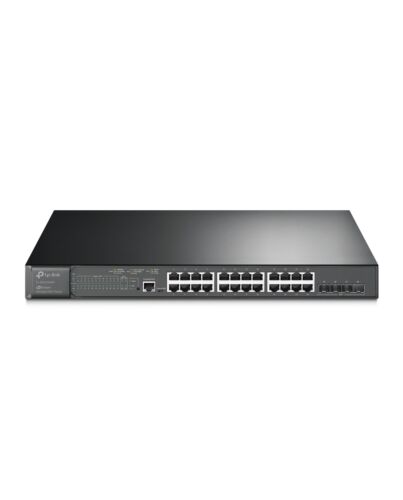

TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

£456.54
TP-Link JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Out of stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled f a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Key Features

  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Static Routing: Helps route internal traffic for more efficient use of network resources
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius ation, and more
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Specifications

Management features

Switch type*
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
System event log
Yes
MIB support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity*
24
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
SFP+ ule slots quantity
4
Console port
RJ-45/Micro-USB
Power connector
AC-in jack

Network

Networking standards*
IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
10G support*
Yes
Port mirroring
Yes
Policy-based routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Active link detection
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4000

Data transmission

Switching capacity*
128 Gbit/s
Forwarding rate
95.23 Mpps
MAC address table*
16000 entries
Number of static routes
48
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
12 MB

Security

DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
SSH/SSL support
Yes
Loop protection
Yes

Security

BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMPv1/v2c/v3, SNTP

Design

Rack mounting*
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)

Power

Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
455.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
24
Total Power over Ethernet (PoE) budget
384 W

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
1554.39 BTU/h

Weight & dimensions

Width
440 mm
Depth
330 mm
Height
44 mm

Packaging content

Cables included
LAN (RJ-45)
Quick start guide
Yes

Packaging data

Package width
440 mm
Package depth
528 mm
Package height
100 mm
Package weight
6.17 kg

Logistics data

Harmonized System (HS) code
85176990

Additional Information

More Information
EAN/UPC 6935364030780
MPN SG3428XMP
BRAND TP-LINK
