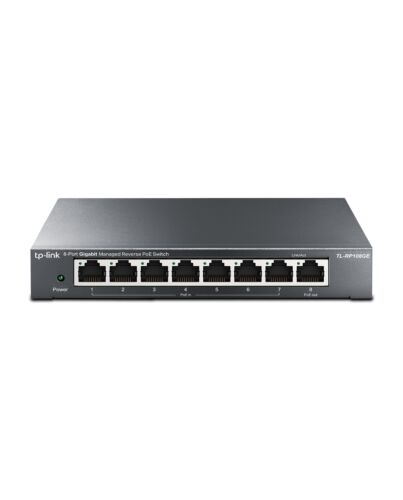

TP-Link 8-Port Gigabit Managed Reverse PoE Switch
£29.33
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power f user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power f user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
Key Features
- 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
- 1 DC output port that supports both 5V and 12 V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and utility
- Green technology reduces power consumption
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
8
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
10G support*
No
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Broadcast storm control
Yes
Rate limiting
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
Number of VLANs
4000
Data transmission
Switching capacity*
16 Gbit/s
Forwarding rate
11.9 Mpps
MAC address table*
4000 entries
Store-and-forward
Yes
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
16000
Security
IGMP snooping
Yes
Loop protection
Yes
Design
Product colour
Black
Reset button
Yes
LED indicators
Yes
Power
Power source*
DC
Power supply included*
No
Input current
1 A
Input voltage
5 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Power over Ethernet (PoE) ports quantity
8
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
158 mm
Depth
99.1 mm
Height
25 mm
Certificates
Certification
FCC, CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364052713 |
|---|---|
| MPN | RP108GE |
| BRAND | TP-LINK |
