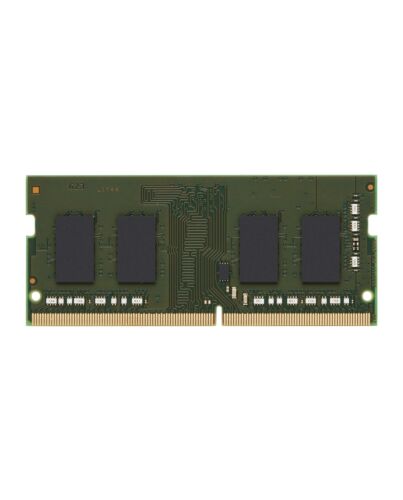

Kingston Technology ValueRAM memory ule 4 GB 1 x 4 GB DDR4 2666 MT/s 260-pin SO-DIMM
£13.06
Kingston Technology ValueRAM , 4 GB, 1 x 4 GB, DDR4, 260-pin SO-DIMM
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This document describes ValueRAM's KVR26S19S6/4 as a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory ule, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
Key Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEP
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the e register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
19
Internal memory*
4 GB
Memory layout (ules x size)*
1 x 4 GB
Internal memory type*
DDR4
Memory data transfer rate*
2666 MT/s
Component for*
Laptop
Memory form factor*
260-pin SO-DIMM
ECC*
No
Memory ranking
1
Memory voltage
1.2 V
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
Programming power voltage (VPP)
2.5 V
Features
Country of origin
Taiwan
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Sustainability
Doesn't contain
Halogen
Weight & dimensions
Width
69.6 mm
Depth
2.45 mm
Height
30 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 740617280647 |
|---|---|
| MPN | KVR26S19S6/4 |
| BRAND | KINGSTON |
