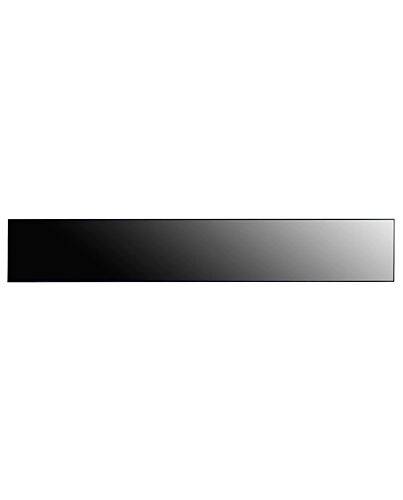

LG 86BH5F Digital signage display 2.18 m (86') IPS 500 cd/m² Black

£3,918.55
LG 86BH5F Digital signage display 2.18 m (86') IPS 500 cd/m² Black, Digital signage flat panel, 2.18 m (86"), IPS, 3840 x 600 pixels
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86-inch Ultra Stretch Signage 86BH5F is the ideal digital display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring virtually any unused and leftover space to life where conventional digital signage would not fit.

58:9 Extended Wide Format
The unique bar-type 58:9 wide screen provides much more flexibility in playing content than a conventional display with 16:9 ratio.

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Multi Screen e with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multiple content on one display by dividing it in up to four parts. It is very useful and convenient for delivering various advertisements or pieces of information at the same time without calibration.

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene with up to 15x15 configuration. This is the best choice if you want to use a large screen, or provide high visual impact to your customers in a different way.

IP5X Design
The IP5X Dustproof Certification ensures that the product is protected f dust, virtually eliminating the risk of performance degradation.

High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, the LG webOS Signage platform enhances user convenience with an intuitive GUI.

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating .

-Time Monitoring with Signage365Care
Easier and faster maintenance is available with Signage365Care,* our optional cloud service solution for remotely monitoring and managing the operating status of signage displays installed in client workplaces. It provides fault diagnosis and remote-control service, ensuring the stable operation of a client’s business.

Specifications

Display

Display diagonal*
2.18 m (86")
Display technology*
IPS
Display resolution*
3840 x 600 pixels
Display brightness*
500 cd/m²
Native aspect ratio
58:9
Response time
8 ms
Contrast ratio (typical)
1100:1
Contrast ratio (dynamic)
500000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Panel life
50000 h

Ports & interfaces

HDMI ports quantity*
3
DVI port*
Yes
DVI-D ports quantity
1
DisplayPorts quantity*
2
DisplayPorts in
1
DisplayPorts out
1
USB port*
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN (RJ-45) ports
1
Audio (L/R) in
1
RS-232 interface
Yes

Design

Product design*
Digital signage flat panel
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
600 x 200 mm
Bezel width (bottom)
5.9 mm
Bezel width (side)
4.4 mm
Bezel width (top)
5.9 mm

Performance

Purpose*
Retail

Power

Power consumption (typical)*
100 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
143 kWh
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Energy efficiency scale
A to G

Weight & dimensions

Width
2158.3 mm
Depth
81.7 mm
Height
348.5 mm
Weight
20.5 kg

Packaging data

Package width
2290 mm
Package depth
228 mm
Package height
599 mm
Package weight
38.2 kg

Packaging content

Remote control included
Yes
Batteries included
Yes
Cables included
DisplayPort

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 85%

Certificates

Certification
CB, NRTL, FCC Class "A", CE, KC, ErP

Logistics data

Harmonized System (HS) code
85285210

Network

Ethernet LAN*
Yes

Additional Information

More Information
EAN/UPC 8806098485536
MPN 86BH5F
BRAND LG
