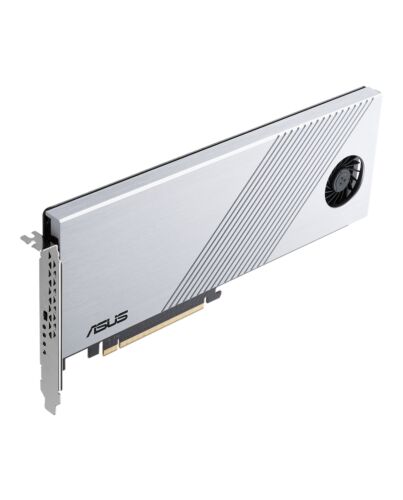

ASUS Hyper M.2 x16 Gen 4 interface cards/adapter Internal
£50.21
ASUS Hyper M.2 x16 Gen 4, PCIe, M.2, PCIe 4.0, Silver, PC, Active
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and Intel platform RAID-on-CPU functions
RAID on CPU
The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.
One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.
Design for unthrottled transfer speed
The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
RAID on CPU
The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299, Z390, Z370 and future platforms' RAID-on-CPU function, and supports PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle lanes can be assigned to storage, allowing you to create a bootable RAID array with up to four M.2 SSDs.
One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe 3.0 drive.
Design for unthrottled transfer speed
The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both PCIe 3.0 and 4.0 — that allow you to expand your system with high-performance SSD storage. Designed for the latest generation of NVMe drives, the card features an upgraded power supply that provides up to 14W of power per drive, as well as a large heatsink and active fan to ensure that drives stay cool for optimum performance.
Key Features
- Two-phase power solution with up to 14-watt output supports the latest NVMe drives
- Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
- Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
- Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® platform RAID-on-CPU functions
- Also support other vendors’ motherboards via PCIe bifurcation in BIOS setting
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
M.2
Expansion card standard
PCIe 4.0
Design
Internal*
Yes
Product colour
Silver
Purpose
PC
Cooling type
Active
Number of fans
1 fan(s)
Number of expansion slots
4
LED indicators
Access
Easy to install
Yes
Features
Data transfer rate (max)
256 Gbit/s
Weight & dimensions
Width
270 mm
Depth
122 mm
Height
15 mm
Packaging data
Quantity
1
Package type
Box
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 4718017624923 |
|---|---|
| MPN | 90MC08A0-M0EAY0 |
