Product Details
Description

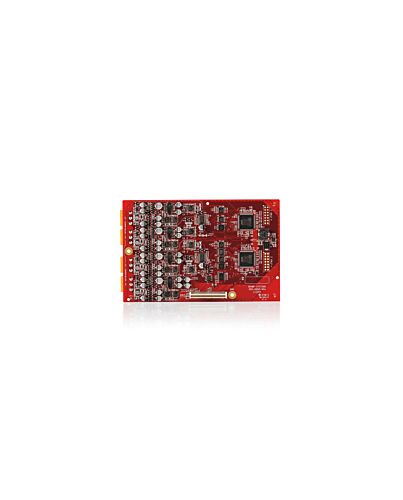

The Tesira EEC-4 expander card is an optional card that can be installed in the Tesira EX-. Each EEC-4 provides four channels of mic or line level audio input with AEC (Acoustic Echo Cancellation). The inputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert.
The Tesira EEC-4 & Tesira EEC-4 CK complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Tesira EEC-4 & Tesira EEC-4 CK complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Four channels of balanced mic or line level input with AEC (Acoustic Echo Cancellation)
- Plug-in barrier strip connectors
- 0 – 66dB gain, adjustable in 6dB increments
- Clip indicator
- +48V Phantom Power
- 100dB to +12dB fader range for level
- Signal invert for reverse polarity
- RoHS compliant and AES grounded
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Audio
Internal*
Yes
Features
Product colour
Multicolour
Weight & dimensions
Package width
254 mm
Package depth
330.2 mm
Package height
101.6 mm
Package weight
360 g
Technical details
Sustainability compliance
Yes
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Logistics data
Country of origin
United States
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8517620050
Additional Information
| EAN/UPC | 814367020515. |
|---|---|
| MPN | 909.0340.900 |
| BRAND | BIAMP |
