ATEN 4-Port USB 3.1 Gen1 Industrial Switch
£194.28
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

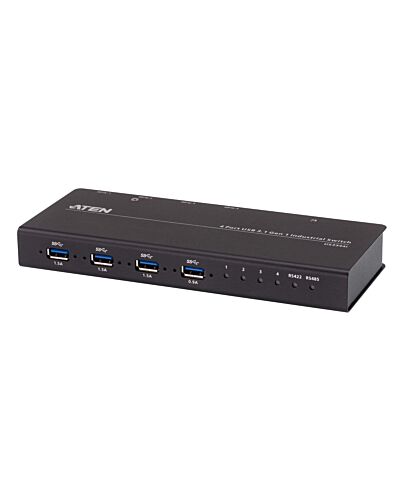

The US3344I is a 4-port USB3.1 Gen1 Industrial Switch that enables 4 computers to share the use USB3.1 Gen1 devices, such as keyboard, mouse and other peripheral devices. The peripheral focus can be given to a computer manually by using pushbutton on the switch.
1x 4x4 USB 3.1 Gen 1 Industrial Hub Switch
2x LIN6-11C1-E11G USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M
2x LIN6-11C1-E12G USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M
1x Remote Port Selector
1x Mounting Kit
1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter)
1x User Instructions
1x 4x4 USB 3.1 Gen 1 Industrial Hub Switch
2x LIN6-11C1-E11G USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M
2x LIN6-11C1-E12G USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M
1x Remote Port Selector
1x Mounting Kit
1x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter)
1x User Instructions
Key Features
- Enables 4 computers to share 4 USB 3.1 Gen1 devices
- Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block
- Supports DC 9-24V power input by terminal block
- Support Battery Charging V1.2 and over current protection
Specifications
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
DC-in jack
Yes
Performance
Maximum data transfer rate*
5 Gbit/s
LED indicators
Yes
Hot-Plug support
Yes
Product colour
Black
Housing material
Metal
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
80 mm
Depth
200 mm
Height
25 mm
Weight & dimensions
Weight
885 g
Packaging content
Cables included
USB Type-A - USB Type-B
Quick start guide
Yes
Packaging data
Package depth
239 mm
Package width
59 mm
Package height
160 mm
Package weight
1.04 kg
Logistics data
Products per master (outer) case
5 pc(s)
Master (outer) case gross weight
5.09 kg
Master (outer) case length
325 mm
Master (outer) case width
250 mm
Master (outer) case height
175 mm
Master (outer) case net weight
4.42 kg
Additional Information
| EAN/UPC | 4719264647574 |
|---|---|
| MPN | US3344I |
