Industrial

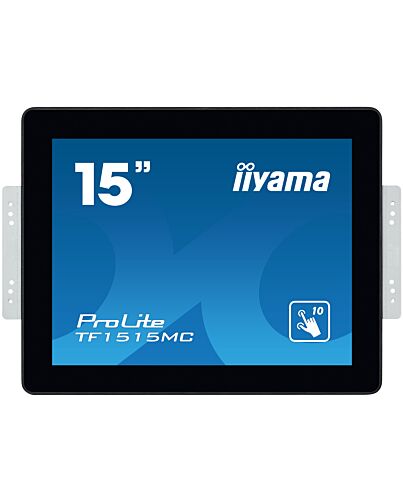

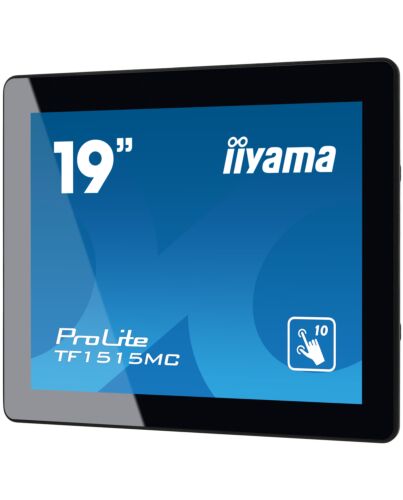

iiyama Open Frame PCAP 10 point touch screen equipped with touch through glass function
£393.19
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Reasons To Buy
Touch Through-Glass

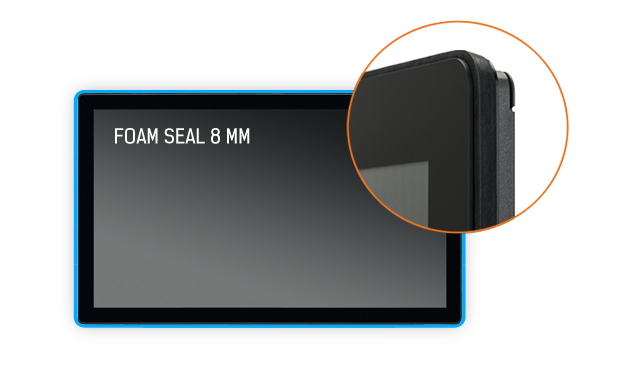

Foam Seal

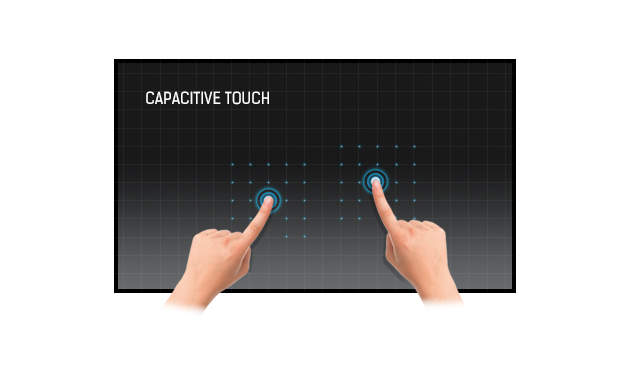

Touch technology - Capacitive

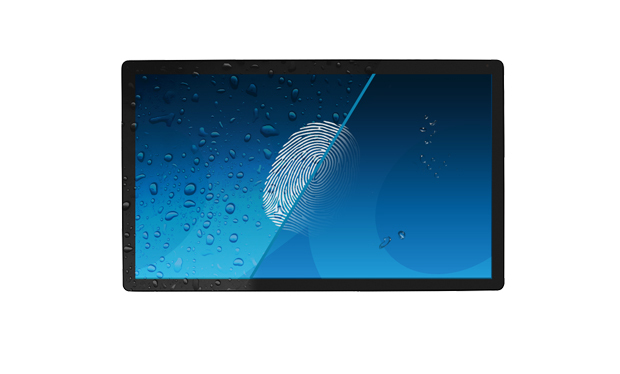

Anti-fingerprint coating

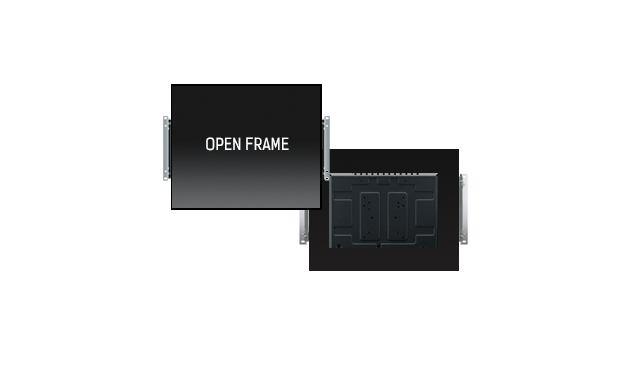

Open frame brackets
Specifications
Display
Panel type
TN
Display diagonal*
38.1 cm (15")
Display technology*
LED
Display resolution*
1024 x 768 pixels
Display brightness*
350 cd/m²
HD type*
XGA
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Native aspect ratio
4:3
Response time
8 ms
Contrast ratio (typical)
800:1
Viewing angle, horizontal
160°
Viewing angle, vertical
150°
Pixel pitch
0.297 x 0.297 mm
Glass thickness
6 mm
Ports & interfaces
HDMI ports quantity*
1
DisplayPorts quantity*
1
Design
Placement supported*
Horizontal/Vertical
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Performance
On Screen Display (OSD)
Yes
Number of OSD languages
7
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
HDCP
Yes
International Protection (IP) code
IP65
Power
Power consumption (typical)*
16 W
Power consumption (standby)*
1.2 W
Power consumption (off)
1.2 W
Energy efficiency class (SDR)
E
Power
Energy consumption (SDR) per 1000 hours
10 kWh
Energy efficiency scale
A to G
Computer system
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Packaging data
Package width
460 mm
Package depth
175 mm
Package height
470 mm
Package weight
4.6 kg
Packaging content
Cables included
AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, cULus
Logistics data
Harmonized System (HS) code
85285210
Sustainability
European Product Registry for Energy Labelling (EPREL) code
378636
Features
Wall mountable
Yes
Other features
Maximum refresh rate
75 Hz
Aspect ratio
4:3
Built-in microphone
No
LED indicators
Yes
Display viewable area (HxV)
304.1 x 228.1 mm
Height (without stand)
41.5 mm
Weight (without stand)
2.9 kg
Depth (without stand)
291 mm
Power supply type
AC/DC
Built-in camera
No
Plug and Play
Yes
Additional Information
| EAN/UPC | 4948570116751. |
|---|---|
| MPN | TF1515MC-B2 |
| BRAND | Iiyama |
