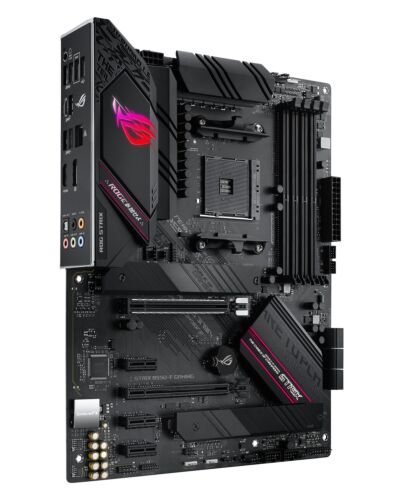

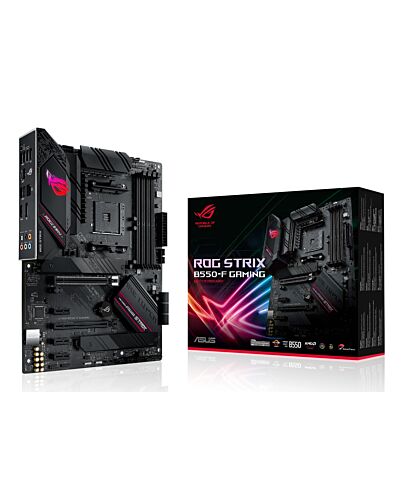

ASUS ROG STRIX B550-F GAMING AMD B550 Socket AM4 ATX
£150.19
ASUS ROG STRIX B550-F GAMING, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.
All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series' gaming roots.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Key Features
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
Reasons To Buy
Identification
Boost
GameFirst VI intelligently switches application priority and adjusts bandwidth accordingly, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay — even when you're streaming high-quality video to your audience or transferring large files.Visualization
An intuitive graph gives you an overview of the network in real time. Simply click on the tab to view current bandwidth usage of each application, geolocation status of each network connection, and an analysis of each WiFi channel.Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM4
Compatible processor series*
AMD Ryzen 3000 Series
Maximum number of SMP processors
1
Supported processor sockets
Socket AM4
Memory
Supported memory types*
DDR4-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600 MHz
Maximum internal memory*
128 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
6
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
2-Way CrossFireX
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
6
Number of EATX power connectors
1
CPU fan connector
Yes
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
Thunderbolt headers
1
12V power connector
Yes
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.2
Headphone outputs
1
Microphone in
Yes
Rear panel I/O ports
S/PDIF out port
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Intel I225-V
Wake-on-LAN ready
Yes
Wi-Fi*
No
Bluetooth
Yes
Bluetooth version
5.0
Features
Motherboard chipset*
AMD B550
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
CPU, Fan
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Cooling type
Active
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
3
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI slots
7
PCI Express slots version
3.0, 4.0
Number of M.2 (M) slots
2
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256000 Mbit
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
68 mm
Packaging content
Cables included
SATA
Manual
Yes
Drivers included
Yes
Other features
Weight
945 g
Additional Information
| EAN/UPC | 4718017749688 |
|---|---|
| MPN | 90MB14S0-M0EAY0 |
