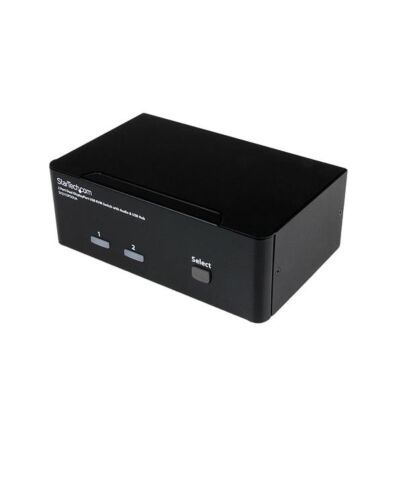

StarTech.com 2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub
£336.23
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook connectivity
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
6
Console ports*
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
2
USB hub
Yes
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
3
Number of microphone inputs
3
DC-in jack
Yes
Network
Ethernet LAN
No
Performance
HD type*
4K Ultra HD
Maximum resolution*
3840 x 2400 pixels
DDC2B support
Yes
Hot-Plug support
Yes
Daisy chain
No
Number of users
1 user(s)
Audio channels
7.1
Design
Rack mounting*
No
Product colour*
Black
Housing material
Steel
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Certification
CE, FCC, REACH, TAA
Display
Built-in display*
No
On Screen Display (OSD)
No
Power
Input voltage
110 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
161 mm
Depth
100 mm
Height
57.5 mm
Weight
734 g
Packaging data
Package width
249 mm
Package depth
187 mm
Package height
100 mm
Package weight
1.19 kg
Packaging content
Manual
Yes
Other features
Audio support
Yes
IP control
No
Logistics data
Harmonized System (HS) code
85176200
Additional Information
| EAN/UPC | 65030839266 |
|---|---|
| MPN | SV231DPDDUA |
