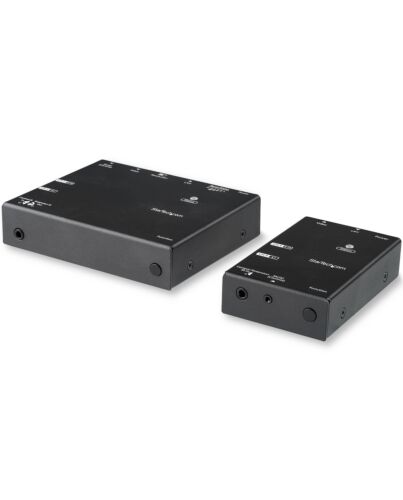

StarTech.com HDMI Over IP Extender Kit with Advanced Compression
£397.37
StarTech.com HDMI Over IP Extender Kit with Advanced Compression, 1920 x 100 pixels, AV transmitter & receiver, 15 m, Wired, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Transmitter & Receiver | 1920 x 1080 (1080p) | Mountable | Multicast & Unicast
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Ideal for Universities, Offices, and Restaurants
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.
Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
• Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
The StarTech.com Advantage
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
Ideal for Universities, Offices, and Restaurants
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.
With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options
The HDMI over LAN extender offers many configurations to accommodate your set up.
This HDMI video extender provides four ways to control your video network configurations.
Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
• Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
The StarTech.com Advantage
Key Features
- Efficiently distribute video throughout your site using your local area network
- Easily create your ideal digital signage with a versatile and scalable video distribution system
- Deliver brilliant HD quality video with 1080p support
- Newer Version Available: ST12MHDLAN2K features longer range (100m/330ft) and video wall support
Specifications
Features
Type*
AV transmitter & receiver
Maximum resolution*
1920 x 100 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
15 m
Maximum refresh rate
60 Hz
Audio output channels
2.0 channels
LED indicators
Status
Supported video modes
1080p
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Rubber feet
Yes
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
1
Number of HDMI outputs
1
USB ports quantity
2
USB connector type
Mini-USB B
Audio input
3.5 mm
Audio output
3.5 mm
Remote (IR) input
1
Remote (IR) output
1
Power
AC input voltage
100 - 240 V
Operating voltage
5 V
Input current
0.3 A
Power
Output current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Weight
3.2 kg
Packaging data
Package width
92 mm
Package depth
108 mm
Package height
24 mm
Packaging content
AC adapter included
Yes
Cables included
LAN (RJ-45), Serial, USB
Included power plug types
ANZ, EU, NA, UK
Manual
Yes
IR blaster included
Yes
IR receiver included
Yes
Remote control included
Yes
Mounting brackets included
Yes
Technical details
Sustainability compliance
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width
324 mm
Master (outer) case length
406 mm
Master (outer) case height
262 mm
Products per master (outer) case
6 pc(s)
Additional Information
| EAN/UPC | 65030878760 |
|---|---|
| MPN | ST12MHDLNHK |
| BRAND | StarTech.com |
