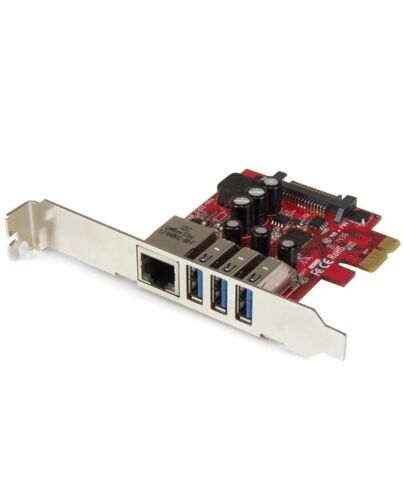

StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet

£47.52
StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet, Internal, Wired, PCI Express, Ethernet, 5000 Mbit/s, Metallic, Red
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.

By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.

Combo-card convenience and cost-savings
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.

This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.

Flexible install options and legacy device support
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.

The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.

Gigabit connectivity and network management
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.

Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.

Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces

Connectivity technology*
Wired
Host interface*
PCI Express
Interface*
Ethernet
Ethernet LAN (RJ-45) ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
3
USB version
3.2 Gen 1 (3.1 Gen 1)
PCI version
2.0
PCI Card form factor
Full-height (low-profile)

Network

Maximum data transfer rate*
5000 Mbit/s
Networking standards*
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
Full duplex
Yes
Jumbo frames support
Yes
Auto-negotiation
Yes
Jumbo frames
9000
VLAN tagging
Yes

Design

Product colour
Metallic, Red
Internal*
Yes
Chipset
Renesas / NEC - µPD720201, Realtek - RTL8153
LED indicators
Activity, Link
Mean time between failures (MTBF)
1920042 h
Certification
CE, FCC

System requirements

Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

System requirements

Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012

Operational conditions

Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
20 - 80%

Weight & dimensions

Width
18 mm
Depth
77 mm
Height
120 mm
Weight
60 g

Packaging data

Drivers included
Yes
Quantity per pack
1 pc(s)
Package width
144 mm
Package depth
176 mm
Package height
33 mm
Package weight
150 g

Packaging content

Mounting brackets included
Yes
Manual
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85176990

Other features

Flow control support
Yes
USB data transfer rates
5000 Mbit/s
UASP support
Yes

Additional Information

More Information
EAN/UPC 65030860796
MPN PEXUSB3S3GE
BRAND StarTech.com
