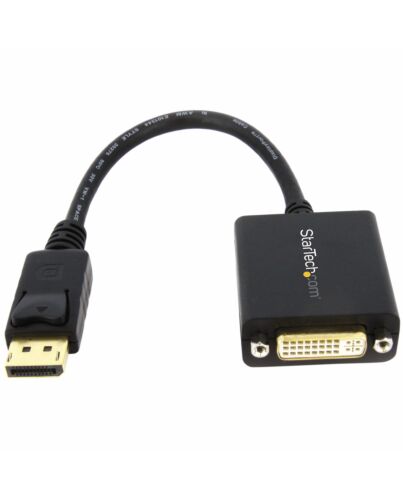

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector

Name: StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector
Brand: StarTech.com
SKU: MAZ-0000001107
Price: 8.34 GBP
Availability: InStock

Be the first to review this product

£8.34

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector, 0.152 m, DisplayPort, DVI-I, Male, Female, Straight

In stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key Features

DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector / 1920x1200/1080p 60Hz; HDCP 1.4 / 6" (15cm) attached cable / DisplayPort Certified
COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter / Tested w/ DVI cables up to 25ft / EDID & DDC pass-through ensure compatibility between source & display
LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / Compact design
EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS / DisplayPort male to DVI female adapter dongle / Connector is DVI-I, however only a digital signal (DVI-D) passes through

Specifications

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Cable length*

0.152 m

Connector 1*

DisplayPort

Connector 2*

DVI-I

Connector 1 gender*

Male

Connector 2 gender*

Female

HDCP

Yes

HDCP version

1.4

DisplayPort version

1.2

Dual Link DVI

Maximum resolution

1920 x 1200 pixels

Supported graphics resolutions

640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Supported video modes

480p, 720p, 1080p

Maximum refresh rate

60 Hz

HBR2 support

Yes

Product colour

Black

Plug and Play

Yes

Converter type

Passive video converter

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

5 - 90%

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, REACH

Weight & dimensions

Weight

43 g

Width

42 mm

Depth

254 mm

Height

17 mm

Packaging data

Package width

200 mm

Package depth

220 mm

Package height

19 mm

Package weight

52 g

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

325 mm

Master (outer) case length

500 mm

Master (outer) case height
