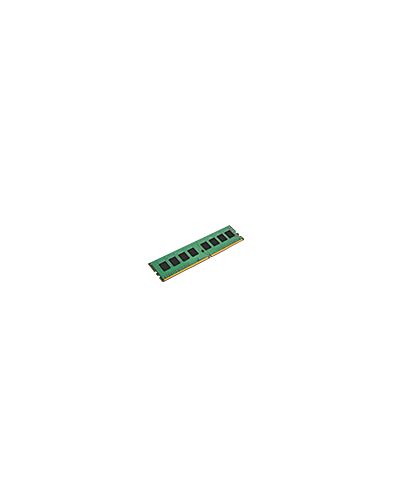

Kingston Technology ValueRAM memory module 8 GB 1 x 8 GB DDR4
£18.35
Kingston Technology ValueRAM , 8 GB, 1 x 8 GB, DDR4, 288-pin DIMM
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key Features
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- RoHS Compliant and Halogen-Free
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
22
Internal memory*
8 GB
Memory layout (modules x size)*
1 x 8 GB
Internal memory type*
DDR4
Component for*
PC/Server
Memory form factor*
288-pin DIMM
ECC*
No
Memory ranking
1
Memory voltage
1.2 V
Module configuration
1024M x 64
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
Programming power voltage (VPP)
2.5 V
Country of origin
Taiwan
Features
Lead plating
Gold
JEDEC standard
Yes
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Sustainability
Doesn't contain
Halogen
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 740617296068 |
|---|---|
| MPN | KVR32N22S8/8 |
| BRAND | KINGSTON |
