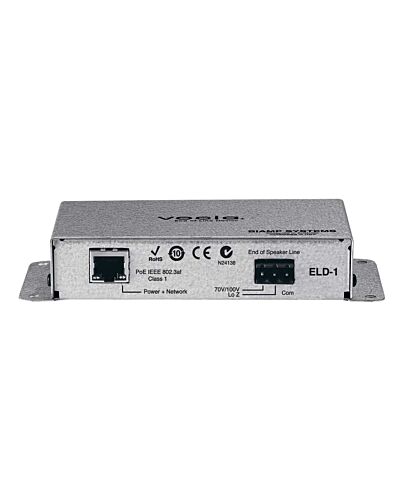

Biamp Vocia ELD-1 network management device Ethernet LAN
£421.66
Biamp Vocia ELD-1, IEEE 802.3af, Wired, CE marked (Europe) RoHS Directive (Europe) RINA (Italy), 0 - 45 °C, 0 - 95%, 300 g
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Vocia® ELD-1 is a networked safety device for use with a Vocia amplifier (e.g. VA-8600/VA-8600c) and is an integral part of standard-compliant voice evacuation and mass notification systems. The ELD-1 tests and reports speaker line integrity between itself and the Vocia amplifier. The device can be surface mounted and utilizes IEEE-compliant Power over Ethernet (PoE) technology. The ELD-1 is compatible with both constant voltage and low impedance systems and does not rely on the speaker line as a power source.
Key Features
- Line monitoring
- Looks for inaudible signal f Vocia amplifier ule
- Power over Ethernet (PoE)
- Reports shorts or opens in the speaker line to the network
- Surface mountable
- Status LED
- Removable terminal block connector
- CE marked and RoHS compliant
Specifications
Network
Ethernet LAN
Yes
Networking standards*
IEEE 802.3af
Ports & interfaces
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Design
Certification
CE marked (Europe)
RoHS Directive (Europe)
RINA (Italy)
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Weight
300 g
Weight & dimensions
Width
153 mm
Depth
78 mm
Height
27 mm
Packaging data
Package width
228.6 mm
Package depth
304.8 mm
Package height
101.6 mm
Package weight
540 g
Logistics data
Quantity per pack
1 pc(s)
Additional Information
| EAN/UPC | 814367020201 |
|---|---|
| MPN | 909.0263.900 |
| BRAND | BIAMP |
