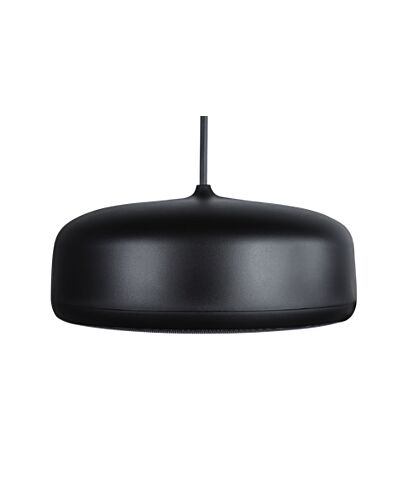

Biamp Desono P6-SM Two-Way 6.5-inch Pendant Mount Loudspeaker Black
£711.34
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Desono™ P6-SM is a low-profile, two-way passive coaxial loudspeaker intended for full range music reproduction in distributed audio applications. It delivers high intelligibility coupled with a wide coverage area, allowing system designers to use fewer speakers while maintaining superior levels of speech intelligibility.
The P6-SM utilizes a 6-position switchable transformer ranging f 1.875W to 60W with low-impedance for 70V/100V operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind, the P6-SM also comes pre-terminated with Magic Cable, a composite cable comprised of two aircraft cables, two audio conductors jacketed separately, and two ripcords for slicing through the cable jackets.
Desono P6-SM is designed for outdoor splash applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
for use with Zoom software.
The P6-SM utilizes a 6-position switchable transformer ranging f 1.875W to 60W with low-impedance for 70V/100V operation, making it an excellent choice for large areas of BGM.
Designed with the installer in mind, the P6-SM also comes pre-terminated with Magic Cable, a composite cable comprised of two aircraft cables, two audio conductors jacketed separately, and two ripcords for slicing through the cable jackets.
Desono P6-SM is designed for outdoor splash applications such as patios or concourses, and an ideal choice for both indoor and outdoor distributed audio applications that demand superior speech intelligibility and full range music reproduction.
for use with Zoom software.
Key Features
- Low-profile “sunshine” form factor
- 6-ohm nominal impedance
- 90° coverage angle
- 6-position constant voltage tap (1.875W, 3.75W, 7.5W, 15W, 30W, 60W) with low impedance
- Bridge-mounted 1-inch (25mm) soft dome tweeter
- 6.5-inch (165mm) polypropylene woofer mechanically lated f the high frequency driver
- CE marked, UL listed, and RoHS compliant
- Covered by Biamp Systems’ five-year warranty
Specifications
Loudspeakers
Speaker type*
2-way
Speaker placement*
Pendant-mountable
Tweeter
Yes
Number of tweeter drivers
1
Tweeter diameter
2.5 cm
Tweeter diameter (imperial)
2.54 cm (1")
Woofer
Yes
Number of woofer drivers
1
Woofer diameter
16.5 cm
Woofer diameter (imperial)
16.5 cm (6.5")
Audio
RMS rated power*
60 W
Peak Music Power Output (PMPO)
240 W
Frequency range
75 - 18500 Hz
Impedance
6 Ω
Sensitivity
88 dB
Sound pressure level (max)
111 dB
Input sensitivity
2830 mV
Performance
Recommended usage*
Universal
Product colour*
Black
Suitable for outdoor use
Yes
Amplifier
Amplifier*
No
Recommended amplifier power (max)
120 W
Recommended amplifier power (min)
60 W
Ports & interfaces
Connectivity technology*
Wired
Bluetooth*
No
Weight & dimensions
Height
139 mm
Weight
5 kg
Diameter
29.2 cm
Packaging data
Package width
381 mm
Package depth
381 mm
Package height
533.4 mm
Package weight
13.6 kg
Packaging content
Mounting brackets included
Yes
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518220000
Other features
Country of origin
China
Additional Information
| EAN/UPC | 814367027316 |
|---|---|
| MPN | 911.0923.900 |
| BRAND | BIAMP |
