Biamp Parlé TCM-1 Pendant
£1,514.33
Biamp Parlé TCM-1 Pendant, Conference microphone, 70 dB, 150 - 16000 Hz, 92 dB, 106 dB, Wired
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Parlé TCM-1 Pendant

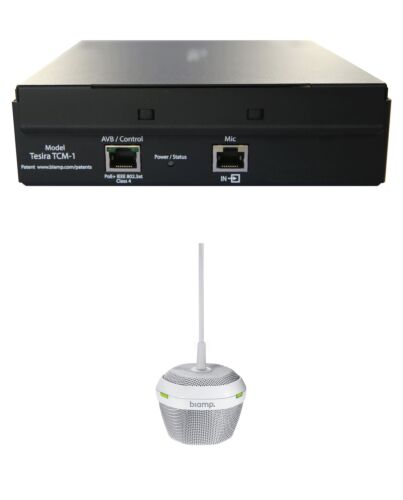

The Parlé TCM-1 is an AVB ceiling microphone comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
The Parlé TCM-1 Black & Parlé TCM-1 White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Parlé TCM-1 is an AVB ceiling microphone comprised of a pendant microphone and plenum box. Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy-chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
TCM Coverage Calculator
The Parlé TCM-1 Black & Parlé TCM-1 White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Beamtracking technology actively tracks and intelligently mixes conversations
- Three 120° zones for 360° coverage
- Plenum box includes DSP for Beamtracking
- LED mute status indicator
- User-adjustable mic height
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Pendant microphone available in either white or black
- Optional tile bridge mounting accessory available
- Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three mics per daisy chain)
- CE marked, UL listed, and RoHS compliant
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Microphone
Microphone sensitivity
70 dB
Microphone frequency
150 - 16000 Hz
Type*
Conference microphone
Microphone dynamic range
92 dB
Maximum sound pressure level (1kHz)
106 dB
Ports & interfaces
Connectivity technology*
Wired
Device interface*
2-pin
Performance
Product colour*
White
Cable length
3 m
Country of origin
United States
Power
Power source*
DC
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
63 mm
Depth
63 mm
Height
51 mm
Diameter
20 cm
Receiver dimensions (WxDxH)
178 x 181 x 51 mm
Receiver weight
1.1 kg
Packaging data
Package width
203.2 mm
Package depth
304.8 mm
Package height
76.2 mm
Package weight
1.62 kg
Technical details
Compliance certificates
RoHS, Federal Communications Commission (FCC), CE
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518100000
Additional Information
| EAN/UPC | 814367026432 |
|---|---|
| MPN | 911.0485.900 |
| BRAND | BIAMP |
