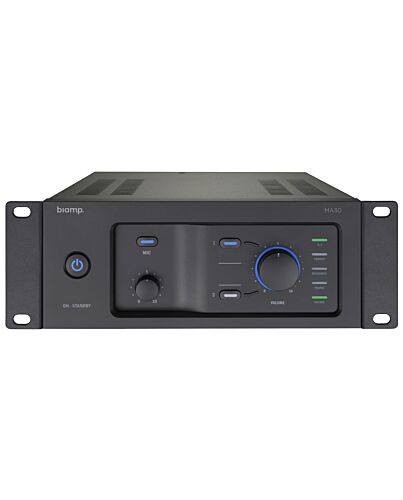

Biamp Commercial Audio MA30 Black
£202.39
Biamp Commercial Audio MA30, D, 0.5%, 90 dB, 30 W, Euroblock, 100 - 240 V
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The MA30 is a half-rack, 30W single channel mixing amplifier. Designed for ease of use, the front panel of the MA30 includes volume and microphone controls, providing immediate visual feedback regarding system operation. The MA30 is equipped with four priority levels for audio routing: one emergency input, one paging input, one mic/line input, and two stereo line, mono summed inputs. It’s audio performance, ease-of-use, and versatile feature set makes the MA30 ideal for a variety of professional audio applications
Key Features
- Single channel; 30 watts of continuous power
- Supports 4Ω and 70V/100V outputs
- Class D amplifier topology
- Intuitive front and rear panels
- Four priority levels for audio routing
- 24V priority output overrides local volume controls
- Dedicated emergency input with mute all switch
- Paging mic input with contact closure and chime
- One mic/line level input with 48V phantom power
- Two stereo inputs
- Fanless operation
- Internal universal power supply
- Auto standby e
- Rack mountable (2RU) with optional accessory
- CE marked, UL listed, and RoHS compliant
Specifications
Audio
Amplifier class*
D
Total Harmonic Distortion (THD)*
0.5%
Signal-to-Noise Ratio (SNR)*
90 dB
RMS rated power
30 W
Ports & interfaces
Speakers connectivity type*
Euroblock
AC (power) in
Yes
Pre out port
Yes
Line inputs (RCA)
2
Microphone in
Yes
Technical details
Connectivity technology*
Wired
Product colour
Black
Country of origin
China
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
24 V
Power consumption (typical)
60 W
Power consumption (standby)
0.5 W
Maximum current
0.5 A
Weight & dimensions
Width
216 mm
Depth
250 mm
Height
89 mm
Weight
2.4 kg
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 2000 m
Packaging data
Package width
349.8 mm
Package depth
296.9 mm
Package height
185.9 mm
Package weight
3.6 kg
Packaging content
Manual
Yes
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518402000
Additional Information
| EAN/UPC | 5420035205563 |
|---|---|
| MPN | 913.0661.900 |
| BRAND | BIAMP |
