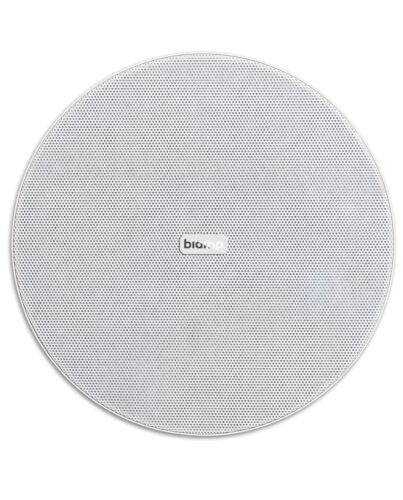

Biamp Desono CM20DTS 2-way White Wired 40 W
£196.54
Biamp Desono CM20DTS, 2-way, Wired, 40 W, 90 - 22000 Hz, 16 Ω, White
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CM20DTS
The versatile Desono CM20DTS 4.25” two-way design built-in ceiling loudspeaker produces a dynamic and warm sound ideal for high-quality background music and voice reproduction. The back can with only 83.5mm (3.287”) built-in depth is probably the shallowest in his kind. The uncompised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100-volt power tapping selector on the front and offers 16 ohms connectivity. The thin edge grill with integrated neodymium grill fixing magnets will blend this top-notch loudspeaker in any design environment.
The versatile Desono CM20DTS 4.25” two-way design built-in ceiling loudspeaker produces a dynamic and warm sound ideal for high-quality background music and voice reproduction. The back can with only 83.5mm (3.287”) built-in depth is probably the shallowest in his kind. The uncompised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100-volt power tapping selector on the front and offers 16 ohms connectivity. The thin edge grill with integrated neodymium grill fixing magnets will blend this top-notch loudspeaker in any design environment.
Key Features
- Zoom
- Low profile, requires only 3.3" (84 mm) mounting depth
- High speech intelligibility coupled with full-range music reproduction
- Thin-edge, magnetically attached grille
- Tap switch allows for 70V/100V or 16Ω low impedance operation
- Tuned bass reflex port for optimized low frequency performance
- Loudspeaker overload protection for 24/7 failsafe operation
- ETL listed to conform with UL Std 1480A and UL 2043; to CSA C22.2#62368-1
Specifications
Loudspeakers
Speaker type*
2-way
Speaker placement*
Ceiling-mountable
Number of drivers*
2
Tweeter
Yes
Number of tweeter drivers
1
Tweeter diameter
2.5 cm
Tweeter diameter (imperial)
2.54 cm (1")
Woofer
Yes
Number of woofer drivers
1
Woofer diameter
10.8 cm
Woofer diameter (imperial)
10.8 cm (4.25")
Audio
RMS rated power*
40 W
Peak Music Power Output (PMPO)
160 W
Frequency range
90 - 22000 Hz
Impedance
16 Ω
Sensitivity
87 dB
Performance
Recommended usage*
Conferencing system
Product colour*
White
Amplifier
Amplifier*
No
Ports & interfaces
Connectivity technology*
Wired
Bluetooth*
No
Power
Transformer taps
2.5,5,10,20 W
Weight & dimensions
Height
84 mm
Weight
2 kg
Diameter
22.3 cm
Packaging data
Package width
276.1 mm
Package depth
638 mm
Package height
137.9 mm
Package weight
3.5 kg
Packaging content
Quantity per pack
2 pc(s)
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518220000
Other features
Country of origin
China
Additional Information
| EAN/UPC | 5420035208007 |
|---|---|
| MPN | 911.0631.900 |
| BRAND | BIAMP |
