Components

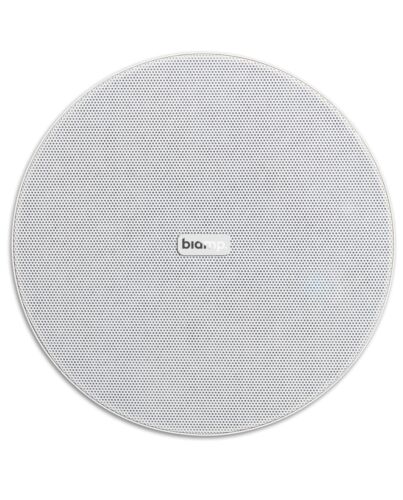

Biamp CM20DT 2-way White Wired 30 W
£57.19
Biamp CM20DT, 2-way, Wired, 30 W, 60 - 20000 Hz, 16 Ω, White
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CM20DT 6.5” two-way built-in loudspeaker can be used in 16 ohms or 70/100-volt es. The high-quality 70/100-volt transformer is equipped with an easy tapping sticker with clear color indication. The transformer colors are aligned with the cables connecting the Quick Fit connector, a handy installer connector via push terminal. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. The paintable thin edge grill makes CM20DT the ultimate loudspeaker for design interior integration.
Specifications
Loudspeakers
Speaker type*
2-way
Speaker placement*
Ceiling-mountable
Number of drivers*
2
Driver diaphragm material
Polypropylene
Tweeter
Yes
Number of tweeter drivers
1
Tweeter diameter
1 mm
Woofer
Yes
Number of woofer drivers
1
Woofer diameter (imperial)
16.5 cm (6.5")
Audio
RMS rated power*
30 W
Peak Music Power Output (PMPO)
120 W
Frequency range
60 - 20000 Hz
Impedance
16 Ω
Sensitivity
86 dB
Sound pressure level (max)
104 dB
Performance
Recommended usage*
Conferencing system
Product colour*
White
Housing material
Acrylonitrile butadiene styrene (ABS), Aluminium
Performance
International Protection (IP) code
IP50
Amplifier
Amplifier*
No
Ports & interfaces
Connectivity technology*
Wired
Bluetooth*
No
Power
Power source type
DC
Packaging data
Package width
238 mm
Package depth
109 mm
Package height
238 mm
Package weight
1.81 kg
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518220000
Other features
Country of origin
China
Additional Information
| EAN/UPC | 5420035206041 |
|---|---|
| MPN | 911.1541.900 |
| BRAND | BIAMP |
