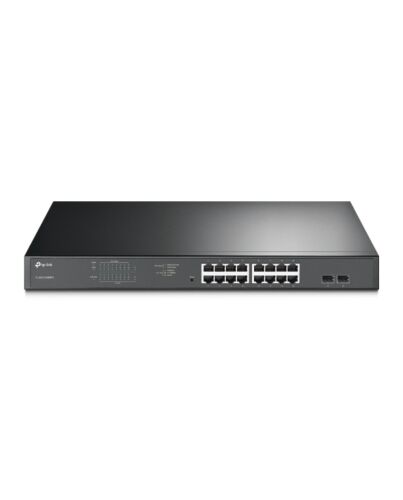

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch
£198.77
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device f power overload operation.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device f power overload operation.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Key Features
- 16 10/100/1000Mbps RJ45 POE+ Ports Switch
- PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
- Port Priority is able to guarantee the quality of sensitive application like video monitor
- Intelligent power management can protect the switch f overload
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
SFP ule slots quantity
2
Network
Networking standards*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Port-based VLAN
Number of VLANs
32
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Data transmission
Switching capacity*
36 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
4.1 MB
Security
IGMP snooping
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
Loop protection
Yes
Design
Rack mounting*
Yes
Form factor
1U
Product colour
Black
Number of fans
2 fan(s)
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
217.22 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
192 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
741.15 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Packaging data
Package width
250 mm
Package depth
528 mm
Package height
80 mm
Package weight
2.91 kg
Certificates
Certification
CE, FCC, RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364086930 |
|---|---|
| MPN | TL-SG1218MPE |
| BRAND | TP-LINK |
