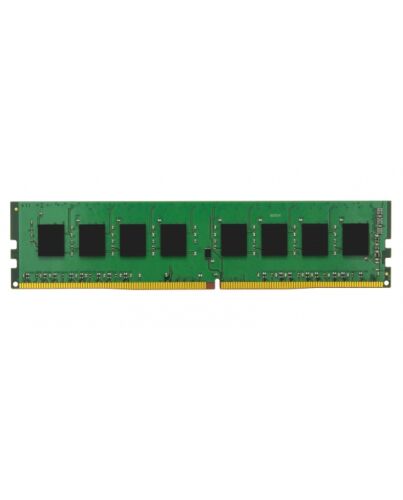

Kingston Technology ValueRAM memory ule 8 GB 1 x 8 GB DDR4 2666 MT/s 288-pin DIMM
£29.58
Kingston Technology ValueRAM , 8 GB, 1 x 8 GB, DDR4, 288-pin DIMM, Green
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory ule, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of
19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Key Features
- Power Supply: VDD=1.2V Typical
- VDDQ = 1.2V Typical
- VPP - 2.5V Typical
- VDDSPD=2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
- data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEP
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
- via the e register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
Features
Buffered memory type
Unregistered (unbuffered)
CAS latency
19
Internal memory*
8 GB
Memory layout (ules x size)*
1 x 8 GB
Internal memory type*
DDR4
Memory data transfer rate*
2666 MT/s
Component for*
PC/Server
Memory form factor*
288-pin DIMM
ECC*
No
Memory ranking
1
Memory voltage
1.2 V
ule configuration
1024M x 64
Row cycle time
45.75 ns
Refresh row cycle time
350 ns
Row active time
32 ns
SPD profile
Yes
Country of origin
Taiwan
Product colour
Green
Features
Cooling type
Heatsink
Lead plating
Gold
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-55 - 100 °C
Technical details
Compliance certificates
RoHS
Sustainability
Doesn't contain
Halogen
Weight & dimensions
Width
133.3 mm
Height
31.2 mm
Logistics data
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 740617270907 |
|---|---|
| MPN | KVR26N19S8/8 |
| BRAND | KINGSTON |
