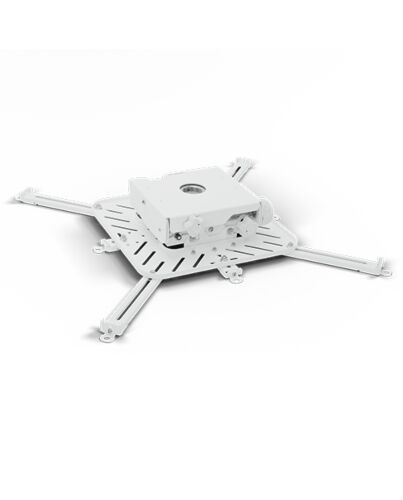

Chief VCTUW project mount Ceiling White
£438.26
Chief VCTUW, Ceiling, 68 kg, White, TÜV, UL
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VCTUW XL Universal Tool-free Projector mount was designed to install quickly while maintaining a sleek aesthetic. Lighter and slimmer than its predecessor, the VCM, the VCT works well with laser projectors between 50-150 lbs (22.7 – 68 kg). Tool-free MicroZone adjustment ensures accurate and reliable image registration.
Key Features
- Low Profile
- The new VCT is 30% slimmer than the VCM mount
- Lightweight
- The new VCT is 25% lighter than the VCM mount
- Sleek Aesthetic
- Matching knobs & hardware
- Available in black and white finish options
- Tool-free MicroZone+ Gearbox Pitch Adjustment
- The fine tune pitch adjustment has a 100:1 gear ratio for precise image alignment
- Can be hand adjusted using the tool-free knob or driven with a 1/2” (13mm) socket
- PrecisionSet™ technology to lock in pitch adjustments
- Tool-free MicroZoneTM Roll & Yaw Adjustments
- Gear driven tool-free knob adjustments
- Lockout nuts enable additional image lock security
- New Universal Interface
- Universal plate is sized to accommodate most patterns within footprint
- Short attachment legs reduce clutter for smaller projector installation patterns
- Long attachment legs extend reach for larger projector installation patterns
- Custom interfaces also available
Specifications
Performance
Mounting type*
Ceiling
Maximum weight capacity*
68 kg
Product colour*
White
Cable management
No
Adjustable arm
No
Performance
Height adjustment
No
Certification
TÜV, UL
Logistics data
Harmonized System (HS) code
83024190
Additional Information
| EAN/UPC | 841872172477 |
|---|---|
| MPN | VCTUW |
