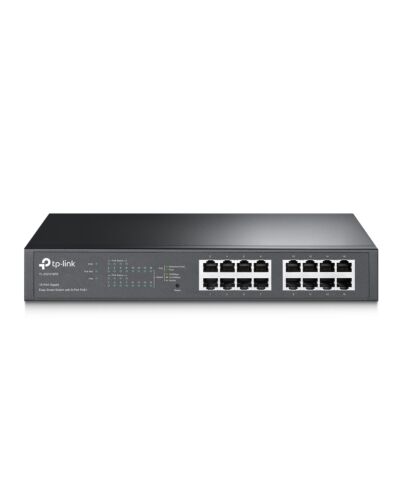

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+
£124.98
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Key Features
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
Specifications
Management features
Switch type*
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Port-based VLAN
Number of VLANs
4000
Data transmission
Switching capacity*
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
4.1 MB
Security
IGMP snooping
Yes
Design
Rack mounting*
Yes
Stackable*
No
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes
Design
Number of fans
1 fan(s)
Performance
Compatible operating systems
Windows
Maximum cable length
100 m
Power
Power source*
AC/PoE
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
124.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
110 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Packaging data
Package type
Box
Resource CD
Yes
Package width
250 mm
Package depth
400 mm
Package height
80 mm
Package weight
2.28 kg
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Additional Information
| EAN/UPC | 6935364082925 |
|---|---|
| MPN | TL-SG1016PE |
