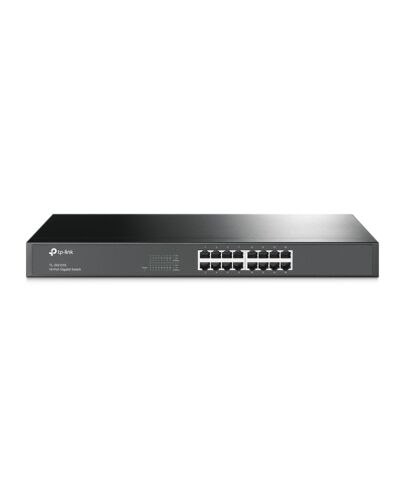

TP-Link 16-Port Gigabit Rackmount Network Switch
£62.86
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Key Features
- 16 10/100/1000Mbps RJ45 ports
- Innovative energy-efficient technology saves power consumption
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack
Network
Networking standards*
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Data transmission
Switching capacity*
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table*
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Design
Rack mounting*
Yes
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes
Performance
Compatible operating systems
Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10
MacOS
NetWare
UNIX
Linux
Maximum cable length
100 m
Fanless
Yes
Power
Power source*
AC
Power supply included*
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
10.44 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
35.6 BTU/h
Weight & dimensions
Width
440 mm
Depth
180 mm
Height
44 mm
Packaging content
Cables included
AC
User guide
Yes
Rack mount kit
Yes
Packaging data
Package type
Box
Package width
250 mm
Package depth
528 mm
Package height
80 mm
Package weight
2.04 kg
Sustainability
Sustainability compliance
Yes
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code
85176990
Additional Information
EAN/UPC | 6935364081263 |
---|---|
MPN | TL-SG1016 |
