Networking Equipments

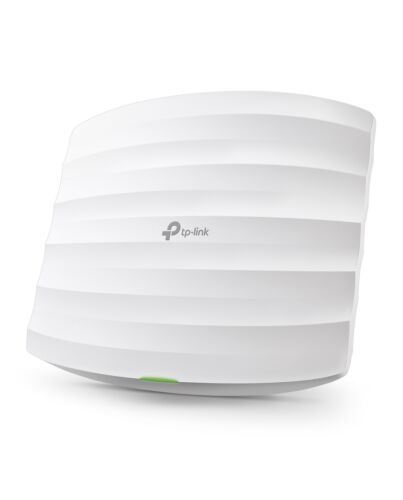

TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
£76.74
TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point, 2.4 GHz, 5 GHz, 1750 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100,1000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Key Features
- Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Load balance ensures large numbers of users have smooth network experiences in high density business networks
- Supports management VLAN for an enhanced network management
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
1750 Mbit/s
Maximum data transfer rate (2.4 GHz)
450 Mbit/s
Maximum data transfer rate (5 GHz)
1300 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af
Cabling technology
10/100/1000Base-T(X)
Automatic channel selection
Yes
Automatic channel scanning
Yes
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
SSID-based VLAN assignment
Rate limiting
Yes
Wireless isolation
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
20 - 23 dBm
Transmitting power (FCC)
24 dBm
Transmitting power
27 dBmW
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Port-based Network Access Control (PNAC)
Yes
Access Control List (ACL)
Yes
Protocols
Management protocols
HTTP/HTTPS
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Active PoE, Passive PoE
Output voltage
12 V
Power
Output current
1.5 A
Power consumption (typical)
12.7 W
Design
Placement*
Ceiling, Wall
Product colour*
White
Cable lock slot
Yes
Cable lock slot type
Kensington
Reset button
Yes
LED indicators
Power
Antenna
Antenna type*
Internal
Antenna direction type
Omni-directional
Antenna features
Integrated antenna
Antenna gain level (max)
4 dBi
Performance
Compatible operating systems
Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width
180 mm
Depth
180 mm
Height
47.5 mm
Packaging data
Package width
228 mm
Package depth
340 mm
Package height
65 mm
Package weight
1.18 kg
Packaging content
Quantity per pack
1 pc(s)
PoE adapter included
Yes
Cables included
AC
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364096687 |
|---|---|
| MPN | EAP245 |
| BRAND | TP-LINK |
