TP-Link Omada 300Mbps Wireless N Outdoor Access Point
£47.08
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Enjoy Wi-Fi Outside, Finally

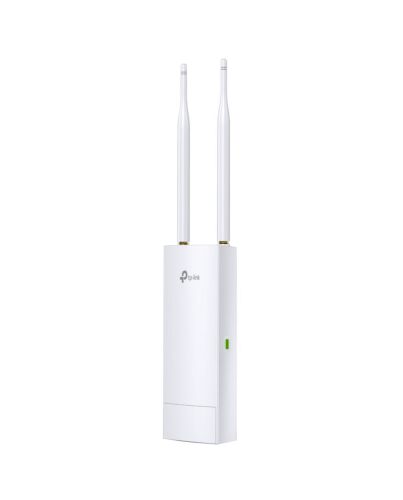

Omada EAP110-Outdoor
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications
EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Deployment
EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Omada EAP110-Outdoor
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications
EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Deployment
EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Key Features
- Built for outdoor Wi-Fi applications
- Up to 300Mbps Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Supports management vlan for an enhanced network management
Specifications
Features
2.4 GHz*
Yes
5 GHz*
No
6 GHz*
No
Maximum data transfer rate*
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Frequency band
2.4 GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection
Yes
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, VLAN mapping
Rate limiting
Yes
Wireless isolation
Yes
Quality of Service (QoS) support
Yes
Transmitting power (CE)
20 dBm
Transmitting power (FCC)
22 dBm
Security
Security algorithms*
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
8
Remote Authentication Dial-In User Service (RADIUS)
Yes
Access Control List (ACL)
Yes
Protocols
Management protocols
HTTP/HTTPS, SNMP, Telnet
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Output voltage
24 V
Output current
0.6 A
Power consumption (max)
3.12 W
Design
Placement*
Pole, Wall
Design
Product colour*
White
International Protection (IP) code
IP65
Reset button
Yes
LED indicators
Power
Antenna
Antenna type*
External
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Antennas quantity
2
Antenna gain level (max)
3 dBi
Performance
Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certification
CE, FCC, RoHS
Weight & dimensions
Width
216 mm
Depth
46 mm
Height
27 mm
Packaging data
Package width
140 mm
Package depth
270 mm
Package height
100 mm
Package weight
620 g
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
PoE adapter included
Yes
Cables included
AC
Mounting kit
Yes
Antenna included
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 65 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Additional Information
| EAN/UPC | 6935364097769 |
|---|---|
| MPN | EAP110-OUTDOOR |
