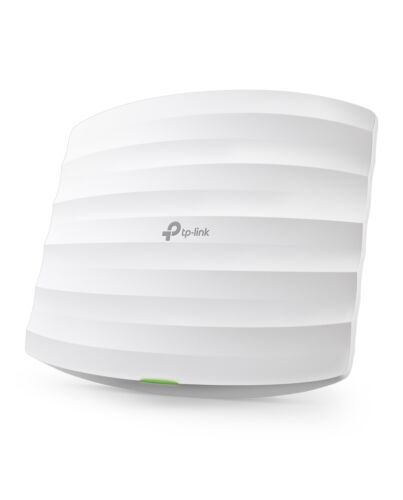

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point
£35.82
TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point, 2.4 GHz, 300 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,..., 10,100 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Key Features
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management vlan for an enhanced network management
Specifications
Features
2.4 GHz*
Yes
5 GHz*
No
6 GHz*
No
Maximum data transfer rate*
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Ethernet LAN data rates
10,100 Mbit/s
Frequency band
2.4 - 2.4835 GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Cabling technology
10/100Base-T(X)
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
VLAN mapping
Rate limiting
Yes
Wireless isolation
Yes
Quality of Service (QoS) support
Yes
Transmitting power (CE)
19 dBm
Transmitting power (FCC)
21 dBm
Receiver sensitivity
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Security
Security algorithms*
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
8
Access Control List (ACL)
Yes
Management features
Web-based management
Yes
Syslog
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
1
Power
Power over Ethernet (PoE)*
Yes
Power over Ethernet (PoE) type supported
Passive PoE
AC input voltage
24 V
Power consumption (typical)
2.8 W
Design
Placement*
Ceiling, Wall
Design
Product colour*
White
Reset button
Yes
LED indicators
Power
Antenna
Antenna type*
Internal
Antenna direction type
Omni-directional
Antennas quantity
2
Antenna gain level (max)
4 dBi
Certificates
Compliance certificates
Federal Communications Commission (FCC), CE, RoHS
Weight & dimensions
Width
189.5 mm
Depth
170.5 mm
Height
29.7 mm
Packaging data
Package width
246 mm
Package depth
268 mm
Package height
69 mm
Package weight
720 g
Package type
Box
Packaging content
Quantity per pack
1 pc(s)
PoE adapter included
Yes
Cables included
AC
Mounting kit
Yes
Quick start guide
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Sustainability
Sustainability compliance
Yes
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 6935364091637 |
|---|---|
| MPN | EAP110 |
