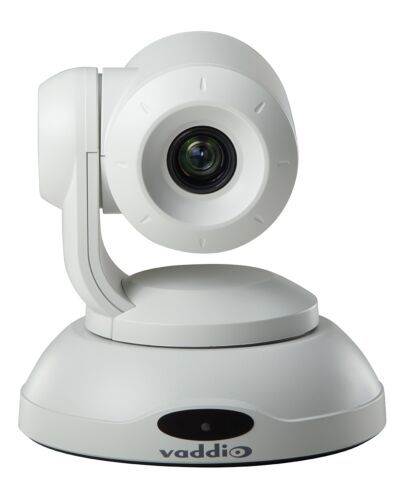

Vaddio ConferenceSHOT 10 2.38 MP White CMOS 25.4 / 2.8 mm (1 / 2.8")
£1,163.84
Vaddio ConferenceSHOT 10, 2.38 MP, CMOS, 10x, White
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
- 10XOptical Zoom Lens
- Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
- Built-in web server for configuration, control and remote management
The Vaddio™ ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high quality imaging, exceptional color reproduction and truly fine detail. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.
The latest generation Exmor™ 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and istic color with super-fast, razor sharp and transparent auto-focus and iris routines.
The ConferenceSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera’s functions with an internal web page with any browser f anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression.
With a 74-degree wide horizontal field-of-view and 10X optical zoom, the ConferenceSHOT 10 USB provides great flexibility in a variety of applications including small to medium-sized conference rooms and huddle rooms as well as corporate, healthcare, government and education environments.
- Exmor 1/2.8-Type 2.14 Effective Megapixels (Native 1080p/60) high-speed, low noise CMOS image sensor
- Built-in web server for configuration, control and remote management
The Vaddio™ ConferenceSHOT 10 Camera is an Enterprise-Class, high definition PTZ conferencing camera with high quality imaging, exceptional color reproduction and truly fine detail. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera offers integrators, dealers and end users with an impressive improvement over other USB conferencing cameras available today.
The latest generation Exmor™ 1/2.8”, 2.38 Megapixel, Full HD (native 1080p/60) high-speed, low noise CMOS image sensor combined with the new ISP, produces vivid and istic color with super-fast, razor sharp and transparent auto-focus and iris routines.
The ConferenceSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera’s functions with an internal web page with any browser f anywhere in the world, over the IP network, while watching the RTSP format video stream with H.264 compression.
With a 74-degree wide horizontal field-of-view and 10X optical zoom, the ConferenceSHOT 10 USB provides great flexibility in a variety of applications including small to medium-sized conference rooms and huddle rooms as well as corporate, healthcare, government and education environments.
Specifications
Camera
Megapixel (approx.)*
2.38 MP
Sensor type
CMOS
Optical sensor size
25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution
2.14 MP
Optical zoom
10x
Optical zoom (super-wide e)
11x
Focal length range
3.8 - 38 mm
Horizontal field of view (wide)
67°
Horizontal field of view (tele)
7.6°
Focal length range (super-wide e)
3.8 - 41.8 mm
Wide end viewing angle (super-wide e)
74°
Minimum illumination
1 lx
Tele end viewing angle (super-wide e)
7.6°
Signal-to-Noise Ratio (SNR)
50 dB
Aperture number of steps
16
Aperture range (F-F)
1.8 - 3.4
White balance
Auto, Manual, One push
Focus adjustment
Auto/Manual
Back Light Compensation (BLC)
Yes
Gain control type
Auto/Manual
Minimum working distance (wide)
1 cm
Maximum working distance (tele)
100 cm
Sync system
Internal
Video
Supported video es
1080i, 1080p
Design
Product colour*
White
Tilt angle range
-30 - 90°
Pan range
-165 - 165°
Web-based management
Yes
Tilt speed (min)
90 °/sec
Tilt speed (max)
90 °/sec
Design
Pan speed (min)
90 °/sec
Pan speed (max)
90 °/sec
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Power
DC input voltage
12 V
Input current
3 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-5 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
20 - 80%
Packaging content
Remote control included
Yes
Cables included
AC, USB
Quick start guide
Yes
Control adapter
Yes
Mounting kit
Yes
AC adapter included
Yes
Audio
Noise reduction
Yes
Logistics data
Harmonized System (HS) code
85258900
Weight & dimensions
Width
155 mm
Depth
145 mm
Height
163 mm
Weight
1.36 kg
Additional Information
| EAN/UPC | 840077504823 |
|---|---|
| MPN | 999-9990-001W |
| BRAND | Vaddio |
