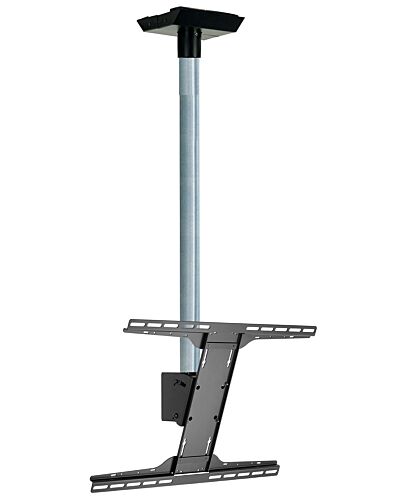

Peerless MOD-FPSKIT150-CPF signage display mount 190.5 cm (75") Black, Zinc
£271.76
Peerless MOD-FPSKIT150-CPF, 112 kg, 190.5 cm (75"), 81.3 cm (32"), 600 x 400 mm, 600 x 400 mm, -5 - 20°
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Peerless-AV constantly strives to improve the versatility and ease of use of our products, and having listened to the feedback from installers and integrators it is apparent that the market requires a product range that can fulfil multiple requirements from a limited number of SKUs. Thus the Modular Series has been introduced as a universal ceiling mount solution with just over a dozen components in the range, allowing the professional installer to configure their own bespoke flat panel or projector mounting solution. The MOD-FPSKIT150 comes with all of the components required to ceiling mount a single 32-75" flat panel display. However, being composed of Modular components the mount can be expanded or changed as required.
Key Features
- MOD-UNL Large universal adaptor supports 32-75" displays up to VESA® 600x400mm, 60kg (132lbs) max. weight
- Integrated cable channel runs through column with open access at both ends for ease of use
- Portrait or Landscape screen installation for added versatility in digital signage applications
- MOD-P150 50mm diameter column supplied as 1.5m length and cuttable to required size
- 1.5m flat panel ceiling mount kit
- Kit includes following parts: 1 x MOD-CPF, 1 x MOD-P150, 1 x MOD-FPMS and 1 x MOD-UNL
- MOD-FPMS Single screen mount allows addition of single screen mounting adaptor, with quick connect feature delivering -5° to +20° tilt and incremental lock at every 5° interval
- MOD-CPF Heavy duty ceiling plate securely mounts to concrete or wood joist ceilings (Optional aesthetic cover MOD-ACF)
Specifications
Mounting
Maximum weight capacity*
112 kg
Minimum screen size
81.3 cm (32")
Number of displays supported*
1
Maximum screen size*
190.5 cm (75")
Mounting type*
Ceiling
Minimum VESA mount*
600 x 400 mm
Maximum VESA mount*
600 x 400 mm
Ergonomics
Tilt angle range
-5 - 20°
Tilt adjustment
Yes
Design
Product colour*
Black, Zinc
Certification
RoHS
Weight & dimensions
Width
619 mm
Depth
225 mm
Weight & dimensions
Height
1672 mm
Weight
7.9 kg
Packaging data
Package width
1588 mm
Package depth
127 mm
Package height
305 mm
Package weight
10.4 kg
Packaging content
Manual
Yes
Technical details
Package dimensions (WxDxH)
1588 x 305 x 127 mm
Orientation
Landscape/Portrait
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 0735029300809 |
|---|---|
| MPN | MOD-FPSKIT150 |
| BRAND | Peerless |
