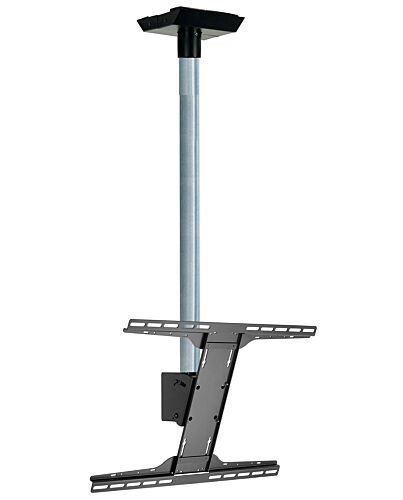

Peerless MOD-FPSKIT200-CPF signage display mount 190.5 cm (75") Black, Chrome
£336.90
Peerless MOD-FPSKIT200-CPF, 60 kg, 190.5 cm (75"), 99.1 cm (39"), 600 x 400 mm, 600 x 400 mm, -5 - 20°
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Peerless-AV constantly strives to improve the versatility and ease of use of our products, and having listened to the feedback from installers and integrators it is apparent that the market requires a product range that can fulfil multiple requirements from a limited number of SKUs. Thus the Modular Series has been introduced as a universal ceiling mount solution with just over a dozen components in the range, allowing the professional installer to configure their own bespoke flat panel or projector mounting solution. The MOD-FPSKIT20 comes with all of the components required to ceiling mount a single 32-75" flat panel display. However, being composed of Modular components the mount can be expanded or changed as required.
Key Features
- Portrait or Landscape screen installation for added versatility in digital signage applications
- Integrated cable channel runs through column with open access at both ends for ease of use
- MOD-FPMS Single screen mount allows addition of single screen mounting adaptor, with quick connect feature delivering -5° to +20° tilt and incremental lock at every 5° interval
- MOD-UNL Large universal adaptor supports 32-75" displays up to VESA® 600x400mm, 60kg (132lbs) max. weight
- MOD-P200 50mm diameter column supplied as 2m length and cuttable to required size
- MOD-CPF Heavy duty ceiling plate securely mounts to concrete or wood joist ceilings (Optional aesthetic cover MOD-ACF)
- 2m flat panel ceiling mount kit
- Kit includes following parts: 1 x MOD-CPF, 1 x MOD-P200, 1 x MOD-FPMS and 1 x MOD-UNL
Specifications
Mounting
Maximum weight capacity*
60 kg
Minimum screen size
99.1 cm (39")
Number of displays supported*
1
Maximum screen size*
190.5 cm (75")
Mounting type*
Ceiling
Minimum VESA mount*
600 x 400 mm
Maximum VESA mount*
600 x 400 mm
Ergonomics
Tilt angle range
-5 - 20°
Cable management
Yes
Tilt adjustment
Yes
Design
Product colour*
Black, Chrome
Certification
RoHS
Weight & dimensions
Width
619 mm
Weight & dimensions
Depth
175 mm
Height
2191 mm
Weight
9.3 kg
Packaging data
Package width
806 mm
Package depth
104 mm
Package height
311 mm
Package weight
10.7 kg
Packaging content
Manual
Yes
Technical details
Orientation
Landscape/Portrait
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 735029300816 |
|---|---|
| MPN | MOD-FPSKIT200-CPF |
| BRAND | Peerless |
