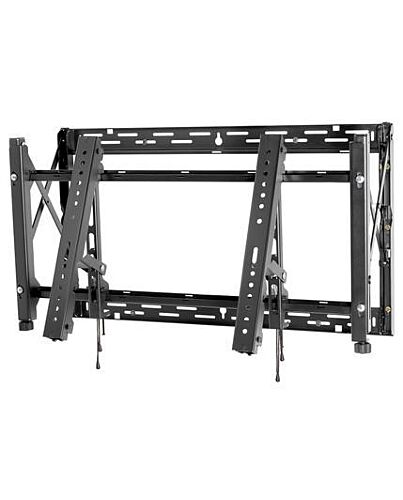

Peerless DS-VW765-LAND signage display mount 165.1 cm (65") Black
£398.14
Peerless DS-VW765-LAND, 56.8 kg, 101.6 cm (40"), 165.1 cm (65"), 200 x 200 mm, 700 x 400 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Video walls should be easy to configure, quick to install, and a snap to maintain. No, it’s not a dream, it’s the DS-VW765-LAND Full-Service Video Wall Mount from Peerless-AV. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. Just install the first mount. Then use the custom wall plate spacers to perfectly place each additional mount on the wall. No measuring, no guessing, no mistakes. It couldn’t be simpler. The innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 2% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability it’s the ultimate video wall mounting solution.
Key Features
- Adjustable VESA mounting hole patterns in 100mm increments, starting at 200 x 200mm up to
- 700 x 400mm, additional patterns supported with adaptor plates
- Modular mount for unlimited video wall display configurations
- Displays and mounts sit flush against the wall for a clean side appearance
- Integrated cable management tie-backs make display-to-display cabling simple
- Included security hardware prevents the mount from extending out from the wall
- Pull-out/prop-open mechanism provides quick service access
- Open wall plate architecture allows for total wall access, increasing electrical and cable management options
- Simple, tool-less micro-adjustments at 8 points seamlessly align the displays
Specifications
Mounting
Maximum weight capacity*
56.8 kg
Minimum screen size
101.6 cm (40")
Number of displays supported*
1
Maximum screen size*
165.1 cm (65")
Mounting type*
Wall
Minimum VESA mount*
200 x 200 mm
Maximum VESA mount*
700 x 400 mm
Design
Product colour*
Black
Weight & dimensions
Width
890 mm
Depth
97 mm
Height
508 mm
Weight
15 kg
Weight & dimensions
Weight (imperial)
17.7 kg (39 lbs)
Packaging data
Package width
943 mm
Package depth
108 mm
Package height
565 mm
Package weight
17.2 kg
Technical details
Compliance certificates
RoHS
Other features
Screen size compatibility
1016 - 1651 mm (40 - 65")
Dimensions (WxDxH)
890 x 97 x 508 mm
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 735029278771 |
|---|---|
| MPN | DS-VW765-LAND |
| BRAND | Peerless |
