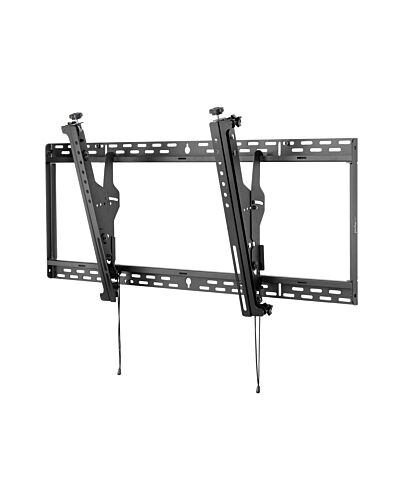

Peerless DS-MBZ647L signage display mount 165.1 cm (65") Black
£143.21
Peerless DS-MBZ647L, 45.5 kg, 116.8 cm (46"), 165.1 cm (65"), 975 x 400 mm, 0 - 15°
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Peerless-AV’s quick service restaurant (QSR) Menu Board Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating a flawless alignment. The QSR Menu Board Mount allows for tool-less height adjustment and fourcorner depth adjustment to alleviate issues with wall imperfections and fine-tuning. The kickstand feature holds the bottom of the display away f the wall during cable connection, reducing installation time and cost. Available in landscape and portrait design options, Peerless-AV offers a one-to-one ordering process, making the QSR Menu Board Mount the perfect mounting solution.
Key Features
- Tool-less vertical adjustment on each universal display adapter bracket for post install leveling and height adjustment fine tuning
- Tool-less four corner depth adjustment aligns the displays on the same plane and helps alleviate issues with wall imperfections
- Included security hardware deters tampering and theft
- DS-MBZ647L - landscape configuration for 46"-65" displays with mounting hole patterns 975 x 400mm (38.40"W x 15.75"H)
- Easy hang wall plate allows for a single person install
- The quick connect latch automatically engages the wall plate for a speedy setup
- Simple one-to-one ordering process
- Open wall plate reduces wall interference
Specifications
Mounting
Maximum weight capacity*
45.5 kg
Minimum screen size
116.8 cm (46")
Number of displays supported*
1
Maximum screen size*
165.1 cm (65")
Mounting type*
Wall
Maximum VESA mount*
975 x 400 mm
Ergonomics
Tilt angle range
0 - 15°
Tilt adjustment
Yes
Distance to the wall (max)
7.2 cm
Design
Product colour*
Black
Weight & dimensions
Width
1015 mm
Weight & dimensions
Depth
78 mm
Height
495 mm
Weight
5 kg
Packaging data
Package width
1022 mm
Package depth
89 mm
Package height
394 mm
Package weight
5.9 kg
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 735029301035 |
|---|---|
| MPN | DS-MBZ647L |
| BRAND | Peerless |
