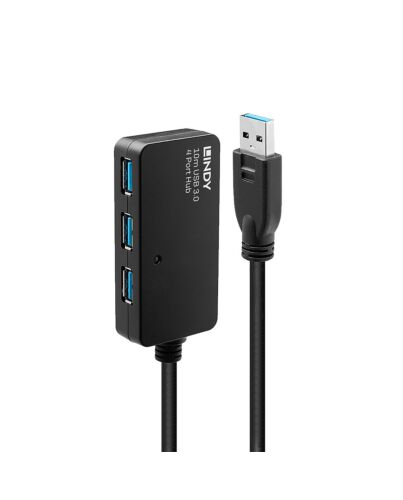

Lindy 10m USB 3.0 Active Extension Pro Hub
£107.92
Lindy 10m USB 3.0 Active Extension Pro Hub, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 5000 Mbit/s, Black, Plastic, Round cable
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a ular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub f the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a ular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).
Using this hub as part of the USB 3.0 Active Extension System Pro
If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.
This Active Extension Hub Pro must be installed as the final part of the extension system.
The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.
The final part of the extension can be any cable or hub f the Extension System Pro range.
If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices
- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used)
- Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
- Easy to use connects to the deviceandrsquo;s existing USB cable (2m maximum)
- 2 year warranty
Specifications
Ports & interfaces
Host interface*
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces*
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ports quantity*
4
DC-in jack
Yes
Features
Data transfer rate*
5000 Mbit/s
Product colour
Black
Housing material
Plastic
LED indicators
Yes
Cable type
Round cable
Plating material
Nickel
AWG wire size
24/24/20
Cable jacket material
Polyvinyl chloride (PVC)
Cable length
10 m
Cable diameter
7 mm
Conductor material
Tinned copper
Contact material
Brass
Connector contacts plating
Gold
Plug and Play
Yes
Bend radius (min)
3.6 cm
Transmission medium
Twisted pair
Nominal attenuation
0.064MHz - 0.08dB
0.256MHz - 0.11dB
0.512MHz - 0.13dB
0.772MHz - 0.15dB
1.0MHz - 0.20dB
4MHz - 0.39dB
8MHz - 0.57dB
12MHz - 0.67dB
24MHz - 0.95dB
48MHz - 1.35dB
96MHz - 1.90dB
200MHz - 3.20dB
400MHz - 5.80dB
Certification
CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Power
Power note
3.5/1.35mm DC
Weight & dimensions
Width
80 mm
Depth
38 mm
Height
15 mm
Weight
790 g
Connector 1 dimensions (WxDxH)
15 x 42 x 8 mm
Packaging data
Quantity per pack
1 pc(s)
Package width
240 mm
Package depth
200 mm
Package height
70 mm
Package weight
900 g
Package type
Box
Packaging content
Manual
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operating temperature (T-T)
-20 - 60 °F
Design
Cable shielding
Aluminum mylar foil
Logistics data
Harmonized System (HS) code
84719000
Additional Information
| EAN/UPC | 4002888431590 |
|---|---|
| MPN | 43159 |
| BRAND | Lindy |
