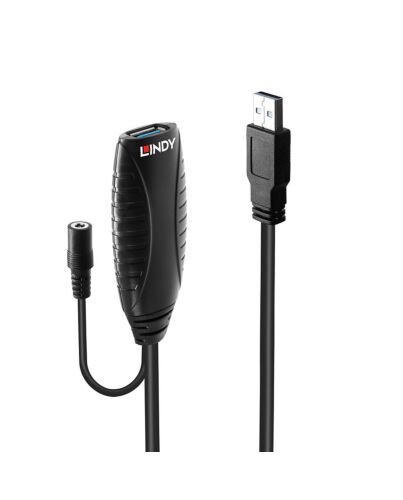

Lindy 10m USB 3.0 Active Extension

£40.73
Lindy 10m USB 3.0 Active Extension, 10 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Key Features

  • 10 metre USB 3.0 Active Extension Repeater Lead
  • Supports transfer rates up to 5Gbps
  • For even greater distances simply connect 2 cables in series
  • Plug and Play
  • 2 year warranty

Specifications

Features

USB version*
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1*
USB A
Connector 2*
USB A
Connector 1 gender*
Male
Connector 2 gender*
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/28/22
Connector material
Nickel
Contact material
Copper
Connector contacts plating
Gold
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shielding
Yes
Connector shield material
Aluminium
Connector housing material
Plastic
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour*
Black
Cable type
Round cable
Plug and Play
Yes
Transmission medium
Twisted pair
Nominal attenuation
(100 MHz, -1.5 dB) (1.25 GHz, -5.0 dB) (2.5 GHz, -7.5 dB) (7.5 GHz, -25 dB)

Power

Power note
3.5/1.35mm DC

Weight & dimensions

Cable length*
10 m
Cable diameter
6 mm
Weight
515 g
Bend radius (min)
6 cm
Connector 1 dimensions (WxDxH)
16 x 37 x 9.8 mm
Connector 2 dimensions (WxDxH)
32 x 85 x 10 mm

Packaging data

Package type
Box
Package width
140 mm
Package depth
90 mm
Package height
150 mm
Package weight
600 g

Packaging content

Quantity per pack*
1 pc(s)

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 70 °C

Certificates

Certification
CE, UKCA, FCC, RoHS, REACH

Logistics data

Harmonized System (HS) code
84733080

Additional Information

More Information
EAN/UPC 4002888431569
MPN 43156
