Computer Cables

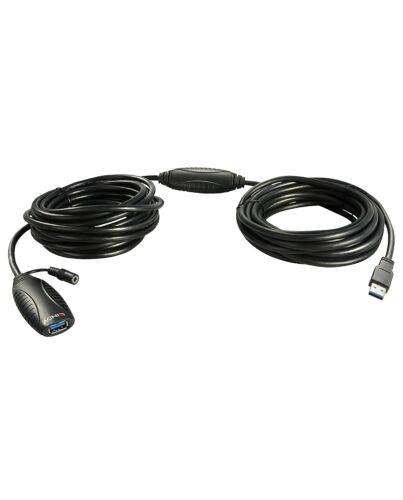

Lindy 15m USB 3.0 Active Extension
£44.52
Lindy 15m USB 3.0 Active Extension, 15 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- 15 metre USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty
Specifications
Features
USB version*
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1*
USB A
Connector 2*
USB A
Connector 1 gender*
Male
Connector 2 gender*
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
AWG wire size
28/28/22
Connector material
Nickel
Contact material
Copper
Connector contacts plating
Nickel
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Copper
Connector shielding
Yes
Connector shield material
Aluminium
Connector housing material
Plastic
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour*
Black
Cable type
Round cable
Plug and Play
Yes
Transmission medium
Twisted pair
Nominal attenuation
100 MHz, -1.5 dB
1.25 GHz, -5.0 dB
2.5 GHz, -7.5 dB
7.5 GHz, -25 dB
Power
Power note
3.5/1.35mm DC
Weight & dimensions
Cable length*
15 m
Cable diameter
7 mm
Weight
1.33 kg
Bend radius (min)
6 cm
Connector 1 dimensions (WxDxH)
16 x 49 x 9 mm
Connector 2 dimensions (WxDxH)
35 x 85 x 15 mm
Connector 3 dimensions (WxDxH)
35 x 100 x 15 mm
Packaging data
Package type
Polybag
Package width
300 mm
Package depth
80 mm
Package height
300 mm
Package weight
1.39 kg
Packaging content
Quantity per pack*
1 pc(s)
Manual
Yes
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 85 °C
Certificates
Certification
CE, UKCA, FCC, RoHS, REACH
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888430999 |
|---|---|
| MPN | 43099 |
| BRAND | Lindy |
