Computer Cables

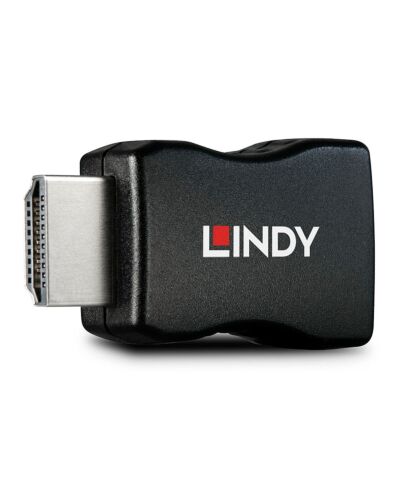

Lindy HDMI 10.2G EDID Emulator
£23.36
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy HDMI 10.2G EDID Emulator Adapter is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 2160p including the ability to passthrough HDCP content, the Emulator is suitable for use with a wide variety of PC and AV applications. When used with the Lindy HDMI / VGA / DVI EDID Recorder (32120) this compact device can provide cloned EDID information to your graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
*Please note: This Emulator does not support HDMI 2.0 or HDCP 2.2 content. If you require this then please see our complete range of EDID emulators
It is also possible to use the Emulator without cloning a display as it comes complete with preset EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
*Please note: This Emulator does not support HDMI 2.0 or HDCP 2.2 content. If you require this then please see our complete range of EDID emulators
Key Features
- Continuously emulates HDMI EDID information
- Supports resolutions up to 3840x2160@30Hz including HDCP pass-through
- For use with 32120 for cloning
- Powered via HDMI Source Interface
- 2 Year warranty
Specifications
Ports & interfaces
Connector 1*
HDMI-A
Connector 2*
HDMI-A
Connector 1 gender
Male
Connector 2 gender
Female
Performance
Product colour*
Black
Housing material
Acrylonitrile butadiene styrene (ABS)
Data transfer rate
18 Gbit/s
Maximum resolution (HDMI)
3840 x 2160 pixels
Compatible products
Lindy 32100
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-10 - 70 °C
Relative humidity
0 - 80%
Certificates
Compliance certificates
RoHS
Certification
REACH, CE, FCC
Weight & dimensions
Width
24 mm
Depth
43 mm
Height
12.3 mm
Weight
8 g
Packaging content
Manual
Yes
Packaging data
Package width
136 mm
Package height
138 mm
Package type
Polybag
Additional Information
| EAN/UPC | 4002888321044 |
|---|---|
| MPN | 32104 |
| BRAND | Lindy |
