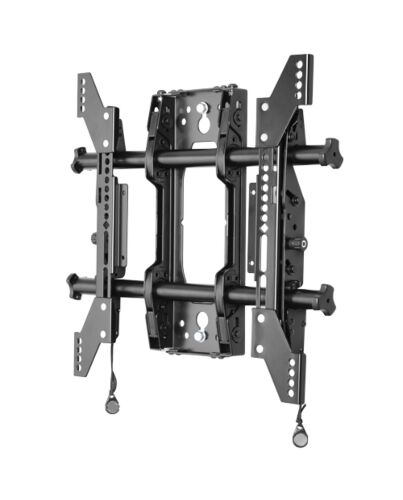

Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud
£125.11
Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud, 34 kg, 81.3 cm (32"), 119.4 cm (47"), 200 x 200 mm, 450 x 400 mm, 0 - 25 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Specifications
Mounting
Maximum weight capacity*
34 kg
Minimum screen size
81.3 cm (32")
Number of displays supported*
1
Maximum screen size*
119.4 cm (47")
Mounting type*
Wall
Minimum VESA mount*
200 x 200 mm
Maximum VESA mount*
450 x 400 mm
Ergonomics
Height adjustment
Yes
Height adjustment range
0 - 25 mm
Tilt angle range
-12 - 2°
Design
Product colour*
Black
Certification
UL Listed
Weight & dimensions
Width
463 mm
Depth
51 mm
Height
359 mm
Logistics data
Harmonized System (HS) code
85299097
Additional Information
EAN/UPC | 841872167756 |
---|---|
MPN | MTMS1U |
BRAND | Chief |
