Components

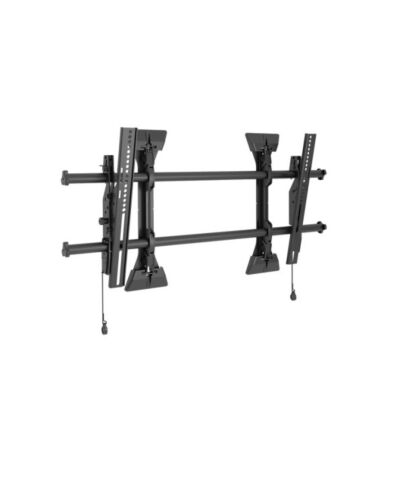

Chief LTM1U TV mount/stand 165.1 cm (65") Black
£183.66
Chief LTM1U, 165.1 cm (65"), 200 x 200 mm, 800 x 400 mm, -2 - 12°, Steel, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Specifications
Mounting
Maximum weight capacity*
90.7 kg
Minimum screen size
94 cm (37")
Number of displays supported*
1
Maximum screen size*
165.1 cm (65")
Suitable for computer monitor
Yes
Minimum VESA mount*
200 x 200 mm
Maximum VESA mount*
800 x 400 mm
Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400
Mounting type*
Wall
Ergonomics
Height adjustment
Yes
Tilt angle range
-2 - 12°
Cable management
Yes
Maximum distance to floor
5.1 cm
Maximum distance to ceiling
5.1 cm
Distance to the wall (max)
5.1 cm
Distance to the wall (min)
5.1 cm
Design
Product colour*
Black
Housing material
Steel
Certification
UL
Packaging content
Mounting kit
Yes
Weight & dimensions
Width
882 mm
Depth
51 mm
Height
432 mm
Weight
9.98 kg
Packaging data
Package weight
10 kg
Logistics data
Harmonized System (HS) code
85299097
Additional Information
EAN/UPC | 841872163277 |
---|---|
MPN | LTM1U |
BRAND | Chief |
