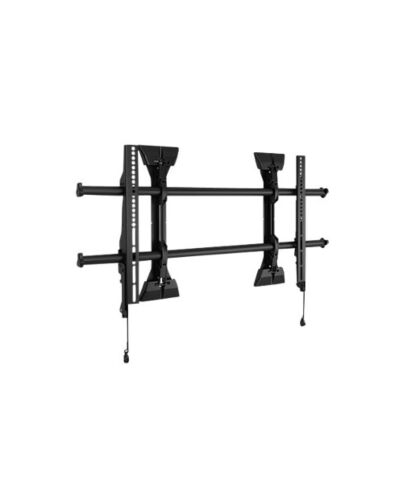

Chief Large Fusion Micro-Adjustable Fixed Wall Display Mount
£143.65
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Key Features
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 17.4" (441 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Quick-Store Cords use magnets to easily store and access pull cords
Specifications
Mounting
Maximum weight capacity*
91 kg
Minimum screen size
94 cm (37")
Number of displays supported*
1
Maximum screen size*
160 cm (63")
Mounting type*
Wall
Ergonomics
Height adjustment
Yes
Design
Product colour*
Black
Certification
UL
Technical details
Orientation
Landscape
Weight & dimensions
Width
883 mm
Depth
53 mm
Depth (max)
5.1 cm
Height
464 mm
Packaging data
Package weight
9 kg
Package type
Box
Logistics data
Harmonized System (HS) code
85299097
Additional Information
| EAN/UPC | 841872163260 |
|---|---|
| MPN | LSM1U |
| BRAND | Chief |
Disclaimer
Actual configuration might differ from illustration
