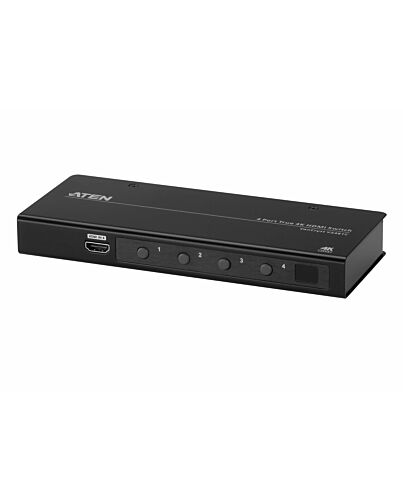

ATEN 4-Port True 4K HDMI Switch
£106.08
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today's demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions
Engineered to meet today's demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions
Key Features
- Allows up to 4 HDMI sources to be connected to one HDMI display
- HDMI 2.0(3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
- Supports HDR
- Supports IR extension
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- LED indication of source device status
- Plug-and-play
Specifications
Ports & interfaces
Video port type*
HDMI
HDMI ports quantity
5
HDMI version
2.0
HDMI in
4
Number of HDMI outputs
1
RS-232 ports
1
DC-in jack
Yes
Features
Material
Metal
Product colour
Black
Consumer Electronics Control (CEC) support
Yes
Plug and Play
Yes
HDCP
Yes
Maximum refresh rate
60 Hz
Maximum operating distance
3 m
Bandwidth
18 Gbit/s
LED indicators
Yes
Bandwidth
600 MHz
Maximum resolution
4096 x 2160 pixels
3D
Yes
HD type
HD
Colour depth
12 bit
Input impedance
100 Ω
Output impedance
100 Ω
HDCP version
2.2
Power
Power consumption (typical)
0.924 W
Weight & dimensions
Width
82.1 mm
Depth
200 mm
Height
25 mm
Weight
654 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
822 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
178 mm
Master (outer) case gross weight
8.57 kg
Products per master (outer) case
10 pc(s)
Master (outer) case net weight
6.54 kg
Additional Information
| EAN/UPC | 4719264646270 |
|---|---|
| MPN | VS481C |
| BRAND | ATEN |
