ATEN 4-Port 4K HDMI Audio/Video Switch with IR Remote Control
£74.76
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

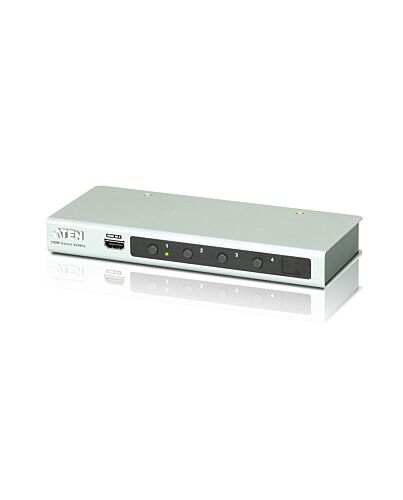

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
Key Features
- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
- Supports 340MHz bandwidth for ultrahigh 4kx2k video
- HDMI (3D, Deep Color, 4kx2k); HDCP 2.2 compatible
- Auto switching modes for auto port selection
- Long distance transmission – up to 15 m (24 AWG)
- Consumer Electronics Control (CEC) support
- Supports Dolby True HD and DTS HD Master Audio
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
- Supports IR extension using a IR extension cable
- LED indication of video source devices
Specifications
Ports & interfaces
Video port type*
HDMI
HDMI ports quantity
5
HDMI in
4
Number of HDMI outputs
1
RS-232 ports
1
DC-in jack
Yes
Features
Material
Metal
Product colour
Silver
Consumer Electronics Control (CEC) support
Yes
HDCP
Yes
Maximum refresh rate
60 Hz
Maximum operating distance
15 m
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Bandwidth
10.2 Gbit/s
LED indicators
Yes
Bandwidth
340 MHz
Maximum resolution
4096 x 2160 pixels
3D
Yes
HD type
4K Ultra HD
Dolby technologies
DTS-HD Master Audio, Dolby TrueHD
Input impedance
100 Ω
Output impedance
100 Ω
HDCP version
2.2
Power
Power consumption (typical)
1.76 W
Weight & dimensions
Width
82.5 mm
Weight & dimensions
Depth
200 mm
Height
25 mm
Weight
659 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
822 g
Packaging content
Quantity per pack
1 pc(s)
Remote control included
Yes
User guide
Yes
Cables included
HDMI
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
178 mm
Master (outer) case gross weight
8.96 kg
Products per master (outer) case
10 pc(s)
Master (outer) case net weight
6.59 kg
Additional Information
| EAN/UPC | 4719264642203 |
|---|---|
| MPN | VS481B |
| BRAND | ATEN |
