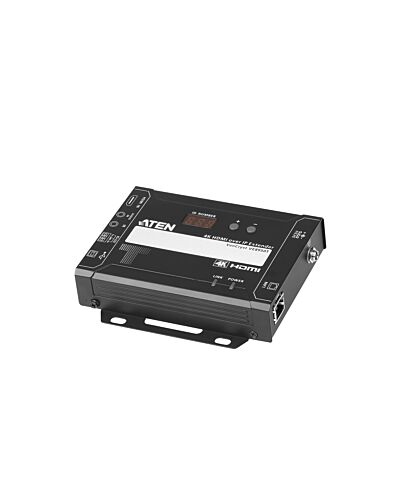

ATEN 4K HDMI Over IP Transmitter
£543.74
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
1x VE8950T 4K HDMI over IP Transmitter
1x RS-232 Terminal block
1x 0AD8-1F05-30M1 Power adapter
1x User instructions
1x VE8950T 4K HDMI over IP Transmitter
1x RS-232 Terminal block
1x 0AD8-1F05-30M1 Power adapter
1x User instructions
Key Features
- Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
- Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8950T via CLI Telnet or RS-232 protocol
- Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad
- lOffers an user-friendly scheduling management function for users to pre-plan the display schedule
- Provides robust and intuitive scheduling management options to help users to manage all events in the calendar to as detailed as to setting events to minute intervals
- Integrates all VE89 units to arrange the profile by grouping individual receiver or video wall
- Multiple profiles can be arranged to play in any order over a selected period of time
Specifications
Features
Type*
AV transmitter
Maximum resolution*
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Maximum refresh rate
60 Hz
Extended display identification data (EDID)
Yes
LED indicators
Yes
Supported video modes
1080p
Supported graphics resolutions
3840 x 2160, 4096 x 2160
HDCP
Yes
Material
Metal
Control type
Buttons
Baud rate
19.2 Kbit/s
Impedance
100 Ω
Daisy chain
Yes
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 output ports
1
HDMI in
1
USB ports quantity
1
USB version
2.0
USB connector type
USB Type-B
Audio input
1
Remote (IR) input
1
DC-in jack
Yes
Power
Operating voltage (transmitter)
5 V
Power consumption (TX)
3.08 W
Power
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
136 mm
Depth
101 mm
Height
29.6 mm
Weight
600 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
790 g
Packaging content
AC adapter included
Yes
Manual
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
4.23 kg
Master (outer) case net weight
3 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264645679 |
|---|---|
| MPN | VE8950T-AT-E |
| BRAND | ATEN |
