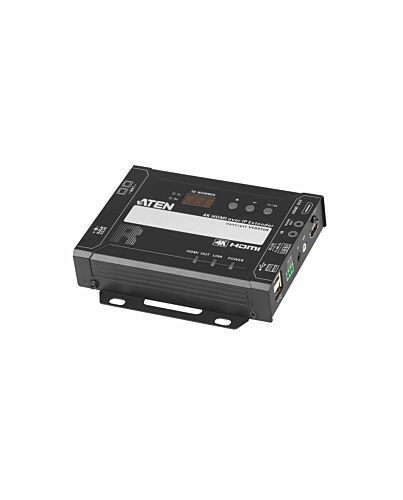

ATEN 4K HDMI Over IP Receiver
£543.74
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Key Features
- Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN without distance limitations
- Offers multi-functionality in extender, splitter, matrix switch, video wall and daisy chain applications
- Mix and match the latest 4K displays and 1080p screens. The built-in scaler automatically scales up incoming video signal to match the maximum resolution of the connected display devices
- Integrated solution – Compatible with ATEN Control System, allowing users to directly operate VE8950R via CLI Telnet or RS-232 protocol
- Effortless operation – One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad
Specifications
Features
Type*
AV receiver
Maximum resolution*
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6
Maximum transfer distance
100 m
Extended display identification data (EDID)
Yes
LED indicators
Yes
Supported video modes
1080p
Supported graphics resolutions
3840 x 2160, 4096 x 2160
HDCP
Yes
Material
Metal
Control type
Buttons
Baud rate
19.2 Kbit/s
Impedance
100 Ω
Daisy chain
Yes
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
RJ-45 input ports
2
Number of HDMI outputs
1
USB ports quantity
2
USB connector type
USB Type-A
Audio output
1
Remote (IR) output
1
DC-in jack
Yes
Power
Operating voltage (receiver)
5 V
Power consumption (RX)
4.53 W
External power adapter
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
136 mm
Depth
101 mm
Height
29.6 mm
Weight
600 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
775 g
Packaging content
AC adapter included
Yes
Manual
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
4.6 kg
Master (outer) case net weight
3 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264645686 |
|---|---|
| MPN | VE8950R-AT-E |
| BRAND | ATEN |
