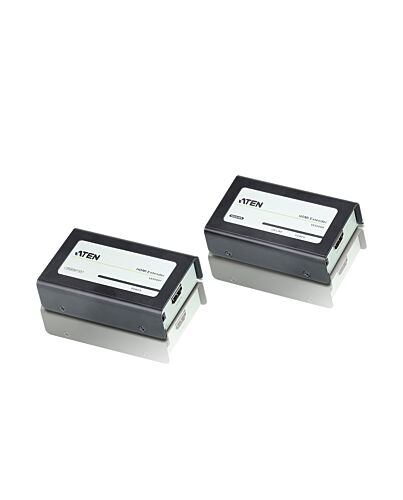

ATEN HDMI Over Cat5e/6 Audio/Video Extender (60m)
£76.10
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
Key Features
- Extends the distance between HDMI source and HDMI display
- Uses Cat 5e cable to connect the local and remote units
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Specifications
Features
Type*
AV receiver
Maximum resolution*
1920 x 1080 pixels
Cable types supported
Cat5, Cat6, Cat6a
Maximum transfer distance
3 m
LED indicators
Yes
Bandwidth
6.75 Gbit/s
Bandwidth
225 MHz
HDCP
Yes
Material
Metal
Product colour
Black
Ports & interfaces
Connectivity technology*
Wired
Ethernet LAN
Yes
RJ-45 input ports
2
RJ-45 output ports
2
HDMI in
1
Number of HDMI outputs
1
DC-in jack
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
55 mm
Depth
90 mm
Height
22 mm
Weight
484 g
Packaging data
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
644 g
Packaging content
AC adapter included
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case length
325 mm
Master (outer) case height
175 mm
Master (outer) case gross weight
3.52 kg
Master (outer) case net weight
2.42 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264642241 |
|---|---|
| MPN | VE800A-AT-E |
| BRAND | ATEN |
