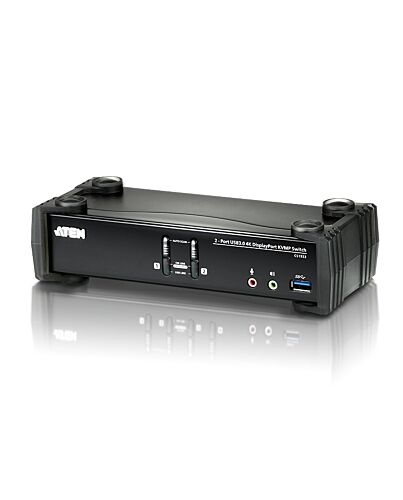

ATEN 2-Port USB 3.1 Gen 1 4K DisplayPort 1.2 KVMP™ Switch with Audio (KVM cables included)
£215.83
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on ern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.
1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch
2x LIN5-20K1-K13G DisplayPort Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cable
2x LIN5-0205-21DG Audio Cable
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x User Instructions
Key Features
- Supports superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz); 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Computer selection via front panel pushbuttons, hotkeys and mouse1
- Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector3
- DisplayPort Dual-e technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
3
Console ports*
3.5mm mic, DisplayPort, USB B
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
USB connector type
USB Type-B
USB version
3.2 Gen 1 (3.1 Gen 1)
Audio connections
Yes
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes
Performance
HD type*
4K Ultra HD
Maximum resolution*
4096 x 2160 pixels
Scan interval
1,99 s
HDCP
Yes
Hot-Plug support
Yes
Design
Product colour*
Black
Housing material
Metal, Plastic
LED indicators
Operation, USB
Push button
Yes
Display
Built-in display*
No
Power
Power source
DC
Output voltage
5 V
Power consumption (typical)
2 W
Power
External power adapter
Yes
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
210 mm
Height
55.5 mm
Weight
1.42 kg
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.86 kg
Packaging content
Cables included
Audio (3.5mm), DisplayPort, USB
Manual
Yes
AC adapter included
Yes
Logistics data
Master (outer) case net weight
7.1 kg
Harmonized System (HS) code
85176200
Master (outer) case width
292 mm
Master (outer) case length
517 mm
Master (outer) case height
194 mm
Master (outer) case gross weight
9.8 kg
Products per master (outer) case
5 pc(s)
Additional Information
| EAN/UPC | 4719264644764 |
|---|---|
| MPN | CS1922 |
| BRAND | ATEN |
