ATEN 17" LCD Console (USB - PS/2 VGA)
£777.16
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

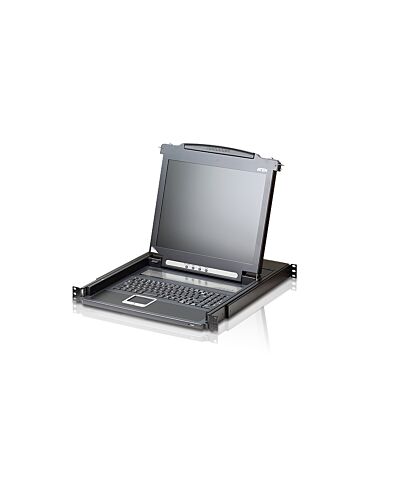

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.
Key Features

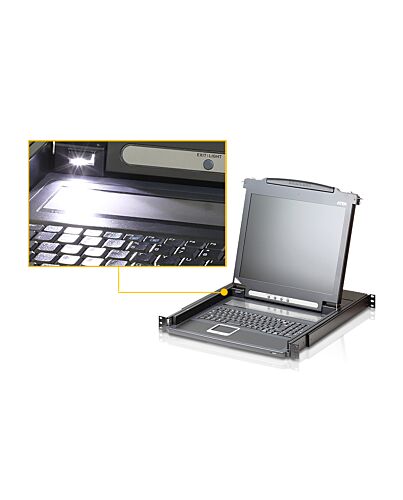

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
- Compatible with PS/2 or USB KVM switches when they are connected using custom KVM cables or converters1
- Internal power supply
- Adjustable depth to fit within a rack
Specifications
Display
Display diagonal
43.2 cm (17")
Display
LCD
Technical details
Product colour
Black
Operating relative humidity (H-H)
0 - 80%
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Connector type
SPHD
Number of computers controlled
1
LED indicators
Yes
Push button
Yes
Compliance certificates
RoHS
Rack capacity
1U
Ports & interfaces
VGA (D-Sub) ports quantity
1
Keyboard port type
PS/2
Mouse port type
PS/2
Video port type
VGA
DC-in jack
No
Keyboard
Keyboard language
US English
Keyboard layout
QWERTY
Hot keys
Yes
Power
Power consumption (typical)
16 W
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Weight & dimensions
Width
480 mm
Height
44 mm
Depth
538.3 mm
Weight
12 kg
Packaging data
Package weight
14.6 kg
Package width
650 mm
Package depth
604 mm
Package height
130 mm
Packaging content
Cables included
AC, KVM
Quick installation guide
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
12 kg
Master (outer) case width
650 mm
Master (outer) case length
604 mm
Master (outer) case height
130 mm
Master (outer) case gross weight
14.6 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264642395 |
|---|---|
| MPN | CL1000M |
| BRAND | ATEN |
