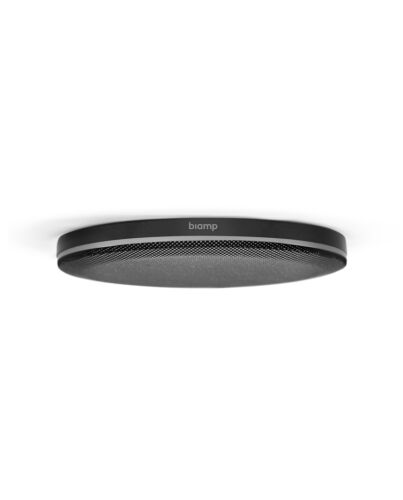

Biamp Parlé TCM-X Black Conference microphone
£1,849.84
Biamp Parlé TCM-X, Conference microphone, 150 - 16000 Hz, 92 dB, 76 dB, 109 dB, Wired
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Parlé TCM-X Ceiling
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.
Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX).
The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
The Parlé TCM-X Black & Parlé TCM-X White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.
Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX).
The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.
The Parlé TCM-X Black & Parlé TCM-X White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Key Features
- Measures 5.90 inches (150 mm) in diameter
- Mounts directly to the ceiling to virtually disappear in room
- Beamtracking technology actively tracks and intelligently mixes conversations
- Four 90-degree zones for full 360-degree room coverage
- Network box includes DSP for Beamtracking
- Uses only one channel of AEC per mic
- Single cable connection via CAT cable
- Beamtracking technology works out-of-box without any lobe aiming or room mapping
- LED mute status indicator
- Available in either black or white
- Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
- Additional RJ-45 connection
- CE marked, UL listed, and RoHS compliant
- Compliant with the US Trade Agreement Act (TAA)
Specifications
Microphone
Microphone frequency
150 - 16000 Hz
Type*
Conference microphone
Microphone dynamic range
92 dB
Microphone Signal-to-Noise Ratio (SNR)
76 dB
Maximum sound pressure level (1kHz)
109 dB
Ports & interfaces
Connectivity technology*
Wired
Device interface*
RJ-45
Performance
Product colour*
Black
Country of origin
United States
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Height
17 mm
Diameter
15 cm
Microphone weight
340 g
Packaging data
Package width
177.8 mm
Package depth
254 mm
Package height
127 mm
Package weight
340 g
Packaging content
Number of products included
1 pc(s)
Technical details
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Logistics data
Export Control Classification Number (ECCN)
EAR99
Harmonized System (HS) code
8518100000
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Additional Information
| EAN/UPC | 814367027071 |
|---|---|
| MPN | 911.0507.900 |
