B-Tech SYSTEM X - Joining Plate Kit for Mounting BT8390 to BT8380
£34.66
B-Tech SYSTEM X - Joining Plate Kit for Mounting BT8390 to BT8380, Wall plate, Black, Steel, 140.8 mm, 57 mm, 158 mm
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description

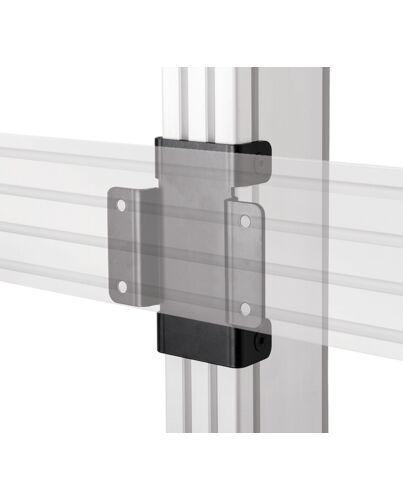

Designed to fit BT8390 mounting rails to BT8380 support columns, the BT8380-JPK is a joining plate which is needed to assemble System X freestanding, mobile or bolt-down video wall solutions. The plate is fitted quickly and easily using the provided sliding nuts and countersunk screws, which allow the mounted rail to be positioned anywhere along the length of the column. A row height spacer (BT8390-SP) is also available (separately) to help position multiple rails when installing video walls, without needing to measure out the position of each BT8380-JPK.
Key Features
- Used for a variety of different fixed, freestanding or mobile video wall installations
- Also ideal for single and twin screen System X installations
- Included sliding nuts allow rails and columns to be positioned as required to suit the application
- A screen row height spacer (BT8390-SP available separately) allows the BT8380-JPK and mounted rails to be positioned at the required height without needing to measure out the correct distance*
- All mounting hardware included
Specifications
Features
Product type*
Wall plate
Product colour
Black
Housing material
Steel
Weight & dimensions
Width
140.8 mm
Depth
57 mm
Height
158 mm
Weight & dimensions
Material thickness
4 mm
Packaging content
Quantity per pack
1 pc(s)
Logistics data
Harmonized System (HS) code
83024200
Additional Information
| EAN/UPC | 5019318501104 |
|---|---|
| MPN | BT8380-JPK/B |
| BRAND | B-Tech |
